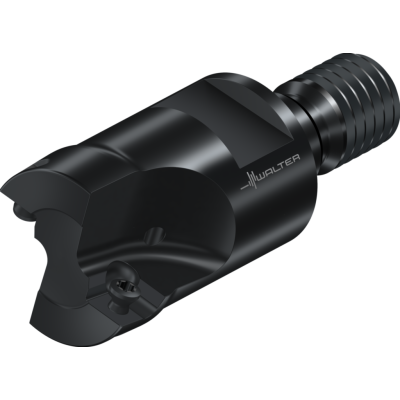

Shoulder milling cutters

M4132-020-TC10-02-06

EAN-code: 0993304724
M-face-milling-finishing-Icon M-face-milling-roughing-Icon M-shoulder-milling-finishing-base-Icon M-shoulder-milling-rouhing-Icon M-slot-milling-Icon
M-Anstellw-8945-Icon M-WSP-pos-Icon
4 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 286,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Cutting edge length
Lc
5,6 mm
Number of indexable inserts - face
Number of WSP
2 EA
Cutting edge diameter
Dc
20 mm
Connection diameter
d1
18,5
Maximum projection length
l4
30 mm
Tool designation
Designation
M4132-020-TC10-02-06
Possible indexable inserts
Type
SD .. 06T2 ..; SDGT06T2PDR
Weight
0,06 kg
Number of teeth
Z
2
Compatible products
Products
Accessories
Assembly parts
W MI SDMW A57 TTG P 01
SDMW-A57 (M4)
Positive square
Show variations
P
M
K
N
S
H
O
SDMT-F57-M4-TTGPVD-P-01
SDMT-F57 (M4)
Positive square
Show variations
P
M
K
N
S
H
O
SDMT-D57-M4-TTGPVD-P-01
SDMT-D57 (M4)
Positive square
Show variations
P
M
K
N
S
H
O
SDMT-D51-TTGPVD-P-01
SDMT-D51 (M4)
Positive square
Show variations
P
M
K
N
S
H
O
W MI SDHT G88 CU P 01
SDHT-G88 (M4)
Finishing inserts
Show variations
P
M
K
N
S
H
O
SDGT-PDR-D57-M4-TTGPVD-P-01
SDGT-PDR-D57 (M4)
Positive square
Show variations
P
M
K
N
S
H
O
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
