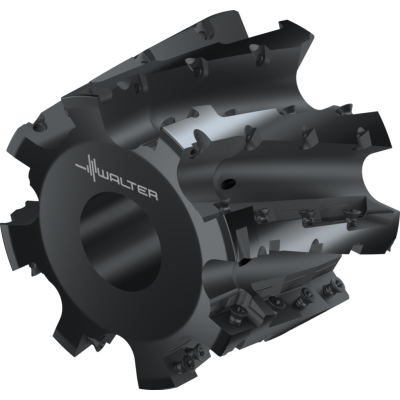

Helical milling cutters

M4258-100-B40-04-77

EAN-code: 0812033724
M-shoulder-milling-rouhing-Icon M-slot-milling-Icon
M-Anstellw-90-Icon M-WSP-pos-Icon
Half effective design 2 or 4 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 2522,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Cutting edge length
Lc
77 mm
Number of indexable inserts - face
Number of WSP
4 EA
Number of indexable inserts - peripheral
Number of WSP
28 EA
Cutting edge diameter
Dc
100 mm
Connection diameter
d1
40
Maximum projection length
l4
80 mm
Tool designation
Designation
M4258-100-B40-04-77
Possible indexable inserts
Type
LDM . 1704 .. R
Possible indexable inserts
Type
SDM . 120408
Weight
2,39 kg
Number of teeth
Z
4
Compatible products
Products
Adaptors
Accessories
Assembly parts
W MI SDMW A57 TTG P 01
SDMW-A57 (M4)
Positive square
Show variations
P
M
K
N
S
H
O
SDMT-F57-M4-TTGPVD-P-01
SDMT-F57 (M4)
Positive square
Show variations
P
M
K
N
S
H
O
SDMT-D57-M4-TTGPVD-P-01
SDMT-D57 (M4)
Positive square
Show variations
P
M
K
N
S
H
O
SDMT-D51-TTGPVD-P-01
SDMT-D51 (M4)
Positive square
Show variations
P
M
K
N
S
H
O
W-MI-LDMW-A57-TTG-P-01
LDMW-A57 (M4)
Positive rhombic
Show variations
P
M
K
N
S
H
O
W MI LDMT F57 TTG P 01
LDMT-F57 (M4)
Positive rhombic
Show variations
P
M
K
N
S
H
O
W MI LDMT D57 TTG P 01
LDMT-D57 (M4)
Positive rhombic
Show variations
P
M
K
N
S
H
O
W MI LDMT D51 TTG P 01
LDMT-D51 (M4)
Positive rhombic
Show variations
P
M
K
N
S
H
O
AC001-SK-P-01
AC001-S
SK adaptor – Vibration-damped
Show variations
AC001-MAS-BT-P-01
AC001-J
MAS-BT adaptor – Vibration-damped
Show variations
AC001-HSK-P-01
AC001-H
HSK adaptor – Vibration-damped
Show variations
AC001-CAPTO-P-01
AC001-C
Walter CaptoTM adaptor – vibration damped
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
