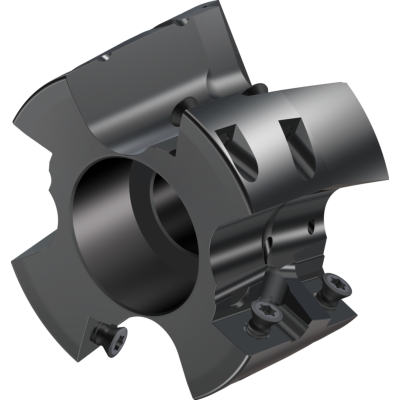

Helical milling cutter front piece
M4258-063-P30-02-36-F
EAN-code: 0915666724
Half effective design with corner front piece
2 or 4 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0%
709,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value

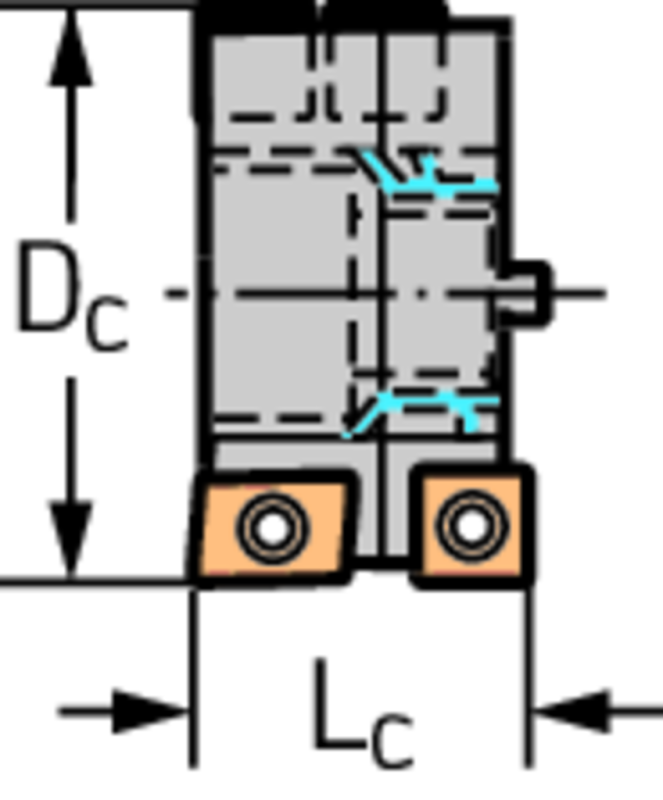

Cutting edge length
Lc
35 mm
Number of indexable inserts
No. of inserts
2 PCE
Number of indexable inserts
No. of inserts
6 PCE
Cutting edge diameter
Dc
63 mm
Maximum projection length
l4
35 mm
Tool designation
Designation
M4258-063-P30-02-36-F
Possible indexable inserts
Type
SDM . 120408
Possible indexable inserts
Type
LDM . 1704 .. R
Weight
WT
0,4 kg
Number of teeth
Z
2
