Products Cutting tools Milling Milling tools with indexable inserts Porcupine milling cutters M425., LD.. and SD.. Capto M4258-C8-MOD, Dc= 80mm 0915581724
Helical milling cutters

M4258-080-C8-03-116-M

EAN-code: 0915581724
M-shoulder-milling-rouhing-Icon M-slot-milling-Icon
M-Anstellw-90-Icon M-WSP-pos-Icon
Half effective design with corner front piece 2 or 4 cutting edges per indexable insert
VAT 0% 3531,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details

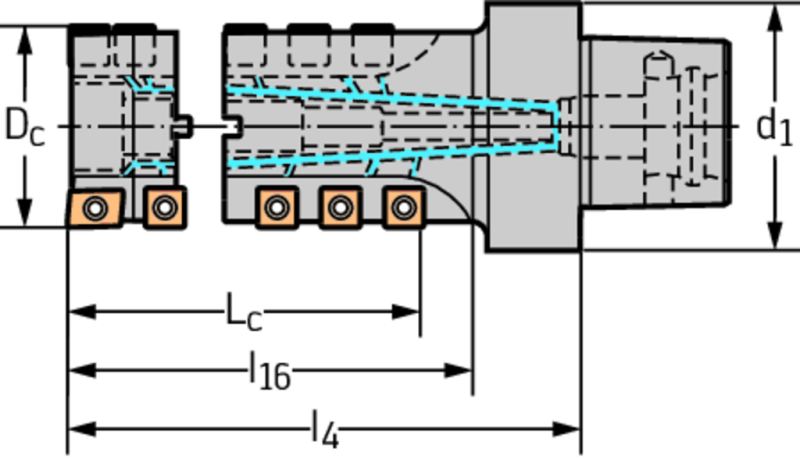

W MI M4258 MOD C D 02
Enlarge
Description Symbol Value
Cutting edge length
Lc
118 mm
Number of indexable inserts
No. of inserts
33 PCE
Number of indexable inserts
No. of inserts
3 PCE
Cutting edge diameter
Dc
8 mm
Useable length
l16
15 mm
Maximum projection length
l4
15 mm
Tool designation
Designation
M4258-080-C8-03-116-M
Possible indexable inserts
Type
SDM . 120408
Possible indexable inserts
Type
LDM . 1704 .. R
Weight
WT
3,9 kg
Number of teeth
Z
3
Compatible products
Products
Adaptors
Accessories
Assembly parts
W MI SDMW A57 TTG P 01
SDMW-A57 (M4)
Positive square
Show variations
SDMT-F57-M4-TTGPVD-P-01
SDMT-F57 (M4)
Positive square
Show variations
SDMT-D57-M4-TTGPVD-P-01
SDMT-D57 (M4)
Positive square
Show variations
SDMT-D51-TTGPVD-P-01
SDMT-D51 (M4)
Positive square
Show variations
W MI LDMW A57 TTG P 01
LDMW-A57 (M4)
Positive rhombic
Show variations
W MI LDMT F57 TTG P 01
LDMT-F57 (M4)
Positive rhombic
Show variations
W MI LDMT D57 TTG P 01
LDMT-D57 (M4)
Positive rhombic
Show variations
W MI LDMT D51 TTG P 01
LDMT-D51 (M4)
Positive rhombic
Show variations
AB584-CAPTO-P-01
AB584-HSK-MASTER
HSK DIN 69893-1 A master
Show variations
W A 2090 CAPTO P 01
R/LC2090
Clamping units
Show variations
W A 391 01 CAPTO P 01
391.01-CAPTO
Extension
Show variations
W-A-391-01-CAPTO-P-01
391.01-CAPTO-KURZ
Extension
Show variations
W A C6 390B 58 50040 P 01
390B.58/55-CAPTO
MAS-BT JIS B 6339 AD/B master
Show variations
W-A-C6-390B-540-50050A-P-01
390.540-CAPTO-A
DIN 69871 AD/B master
Show variations
W A C6 390B 140 50030 P 01
390B.140-CAPTO
DIN 69871 AD/B master
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W-MI-M4258-MOD-CAPTO-BODY-TTG-P-01
M4258-C8-BODY
Helical milling cutter basic body
Show variations
W MI M4258 MOD FRONT TTG P 01
M4258-C-FRONT
Helical milling cutter front piece
Show variations
