Chamfer milling cutters
M4574-025-TC12-03-05 NEW 2019
EAN-code: 0993314724
4 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0%
314,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product

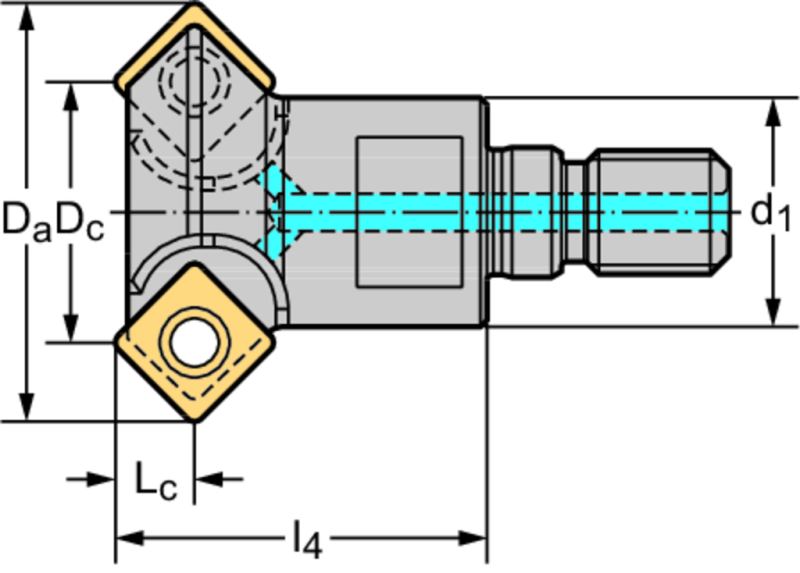

Technical details
Description
Symbol
Value
Maximum cutting diameter
Da
37,8 mm
Cutting edge length
Lc
5,5 mm
Cutting edge diameter
Dc
32 mm
Maximum projection length
l4
35 mm
Tool designation
Designation
M4574-025-TC12-03-05
Possible indexable inserts
Type
SDM . 09T308
Weight
WT
0,12 kg
Number of teeth
Z
3
Number of indexable inserts
No. of inserts
3 PCE
