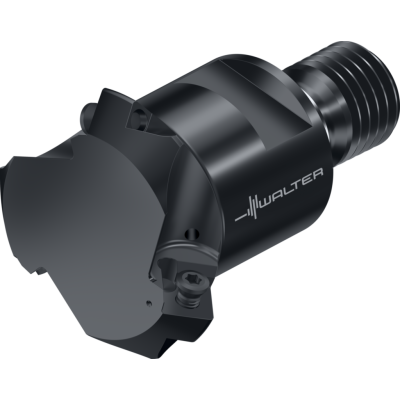

Chamfer milling cutters

M4574-032-TC16-03-05 NEW 2019

EAN-code: 0993315724
M-chamfering-2-Icon
M-Anstellw-45-Icon M-WSP-pos-Icon
4 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 332,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Maximum cutting diameter
Da
44,8 mm
Cutting edge length
Lc
5,5 mm
Cutting edge diameter
Dc
32 mm
Maximum projection length
l4
40 mm
Tool designation
Designation
M4574-032-TC16-03-05
Possible indexable inserts
Type
SDM . 09T308
Weight
WT
0,21 kg
Number of teeth
Z
3
Number of indexable inserts
No. of inserts
3 PCE
Compatible products
Products
Accessories
Assembly parts
W MI SDMW A57 TTG P 01
SDMW-A57 (M4)
Positive square
Show variations
SDMT-F57-M4-TTGPVD-P-01
SDMT-F57 (M4)
Positive square
Show variations
SDMT-D57-M4-TTGPVD-P-01
SDMT-D57 (M4)
Positive square
Show variations
SDMT-D51-TTGPVD-P-01
SDMT-D51 (M4)
Positive square
Show variations
W MI SDHT G88 CU P 01
SDHT-G88 (M4)
Positive square
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
