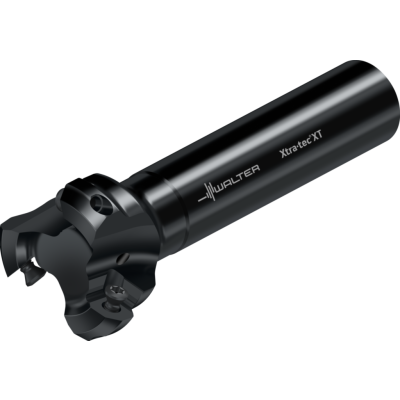

Octagonal face milling cutters

M5004-040-A20-03-03 NEW 2021

EAN-code: 0630957724
M-chamfering-2-Icon M-face-milling-finishing-Icon M-face-milling-roughing-Icon M-helical-interpolation-Icon M-ramping-Icon
M-Anstellw-43-Icon M-Wiper-Icon M-WSP-pos-Icon
8 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 407,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W MI F4080 Z D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
32 mm
Cutting edge length
Lc
3 mm
Cutting edge length
Lc2
8 mm
Maximum cutting diameter
Da
40 mm
Overall length
l1
110 mm
Functional length
l4
35 mm
Tool designation
Designation
M5004-040-A20-03-03
Possible indexable inserts
Type
OD .. 0504 ..; ODHX0504ZZR
Weight
WT
0,28 kg
Number of teeth
Z
3
Number of indexable inserts
No. of inserts
3 PCE
Compatible products
Products
Adaptors
Accessories
Assembly parts
ODHT-F57-NEBENSCHNEIDE-TTGPVD-P-01
ODMT-F57 MIT NEBENSCHNEIDE
Positive octagonal
Show variations
ODMW-A27-TTGPVD-P-01
ODMW-A27
Positive octagonal
Show variations
ODMW-A57-TTGPVD-P-01
ODMW-A57
Positive octagonal
Show variations
ODMT-D57-NEBENSCHNEIDE-TTGPVD-P-01
ODMT-D57 MIT NEBENSCHNEIDE
Positive octagonal
Show variations
ODMT-D57-ECKENRADIUS-TTGPVD-P-01
ODMT-D57 MIT ECKENRADIUS
Positive octagonal
Show variations
W MI ODHX ZZR A57 TTG P 01
ODHX-A57
Finishing inserts
Show variations
W MI ODHW ZZN A57 TTG P 01
ODHW-A57 MIT NEBENSCHNEIDE
Positive octagonal
Show variations
W MI ODHW A57 GREY P 01
ODHW-A57 WSN10
Positive octagonal
Show variations
W MI ODHT ZZN G77 SILVER P 01
ODHT-G77 MIT NEBENSCHNEIDE
Positive octagonal
Show variations
W MI ODHT G88 POLIERT P 01
ODHT-G88 MIT NEBENSCHNEIDE
Positive octagonal
Show variations
ODHT-F57-NEBENSCHNEIDE-TTGPVD-P-01
ODHT-F57 MIT NEBENSCHNEIDE
Positive octagonal
Show variations
W MI ODHT F57 TTG P 01
ODHT-F57 MIT ECKENRADIUS
Positive octagonal
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W-A-C330-P-01
C330-ER40
DIN 6499 ER collets
Show variations
W A C330 P 01
C330-ER32
DIN 6499 ER collets
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
