Products Cutting tools Milling Milling tools with indexable inserts Face milling cutters Positive indexable inserts M5004 and F2010, 43° M5004-OD05 Octagonal face milling cutters M5004 M5004-125-B40-10-03

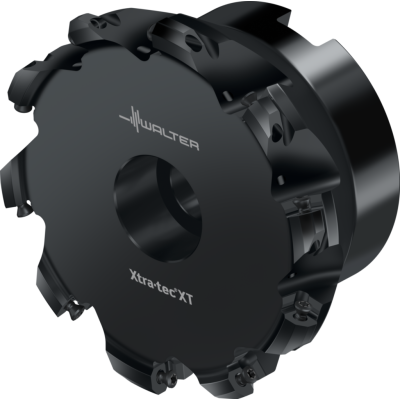

Octagonal face milling cutters

M5004-125-B40-10-03 NEW 2021

EAN-code: 0627230724
M-chamfering-2-Icon M-face-milling-finishing-Icon M-face-milling-roughing-Icon M-helical-interpolation-Icon M-ramping-Icon
M-Anstellw-43-Icon M-Wiper-Icon M-WSP-pos-Icon
8 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 1037,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W MI F4080 B D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
117 mm
Cutting edge length
Lc
3 mm
Cutting edge length
Lc2
8 mm
Maximum cutting diameter
Da
125 mm
Functional length
l4
63 mm
Tool designation
Designation
M5004-125-B40-10-03
Possible indexable inserts
Type
OD .. 0504 ..; ODHX0504ZZR
Number of teeth
Z
1
Number of indexable inserts
No. of inserts
1 PCE
Compatible products
Products
Adaptors
Accessories
Assembly parts
ODHT-F57-NEBENSCHNEIDE-TTGPVD-P-01
ODMT-F57 MIT NEBENSCHNEIDE
Positive octagonal
Show variations
ODMW-A27-TTGPVD-P-01
ODMW-A27
Positive octagonal
Show variations
ODMW-A57-TTGPVD-P-01
ODMW-A57
Positive octagonal
Show variations
ODMT-D57-NEBENSCHNEIDE-TTGPVD-P-01
ODMT-D57 MIT NEBENSCHNEIDE
Positive octagonal
Show variations
ODMT-D57-ECKENRADIUS-TTGPVD-P-01
ODMT-D57 MIT ECKENRADIUS
Positive octagonal
Show variations
W MI ODHX ZZR A57 TTG P 01
ODHX-A57
Finishing inserts
Show variations
W MI ODHW ZZN A57 TTG P 01
ODHW-A57 MIT NEBENSCHNEIDE
Positive octagonal
Show variations
W MI ODHW A57 GREY P 01
ODHW-A57 WSN10
Positive octagonal
Show variations
W MI ODHT ZZN G77 SILVER P 01
ODHT-G77 MIT NEBENSCHNEIDE
Positive octagonal
Show variations
W MI ODHT G88 POLIERT P 01
ODHT-G88 MIT NEBENSCHNEIDE
Positive octagonal
Show variations
ODHT-F57-NEBENSCHNEIDE-TTGPVD-P-01
ODHT-F57 MIT NEBENSCHNEIDE
Positive octagonal
Show variations
W MI ODHT F57 TTG P 01
ODHT-F57 MIT ECKENRADIUS
Positive octagonal
Show variations
W A AC001 SK P 01
AC001-S
SK adaptor – Vibration-damped
Show variations
W A AC001 MAS BT P 01
AC001-J
MAS-BT adaptor – Vibration-damped
Show variations
W A AC001 HSK P 01
AC001-H
HSK adaptor – Vibration-damped
Show variations
W A AC001 CAPTO P 01
AC001-C
Walter CaptoTM adaptor – vibration damped
Show variations
W A AK155 HSK P 01
AK155.7
DIN 69893-1 A shell mill arbor
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
