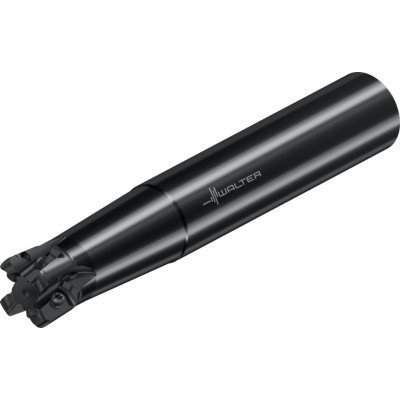

High-feed milling cutter

M5008-020-A20-04-01

EAN-code: 0977244724
M-face-milling-roughing-Icon M-helical-interpolation-Icon M-plunging-open-Icon M-pocket-milling-Icon M-ramping-Icon
Kappa-0-17-Icon M-WSP-neg-Icon
4 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 387,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Cutting edge length
Lc
1 mm
Maximum radial depth of cut
ar
2,9 mm
Cutting edge diameter
Dc
14,1 mm
Connection diameter
d1
20
Maximum cutting diameter
Da
20 mm
Overall length
l1
130 mm
Functional length
l4
50 mm
Tool designation
Designation
M5008-020-A20-04-01
Possible indexable inserts
Type
ENMX08T316R
Weight
0,28 kg
Number of teeth
Z
4
Number of indexable inserts
Number of WSP
4
Compatible products
Products
Adaptors
Products
Accessories
Assembly parts
ENMX-G67-TTGPVD-P-01
ENMX-G67
Negative rhombic
Show variations
P
M
K
N
S
H
O
ENMX-F47-TTGPVD-P-01
ENMX-F47
Negative rhombic
Show variations
P
M
K
N
S
H
O
ENMX-D27-TTGPVD-P-01
ENMX-D27
Negative rhombic
Show variations
P
M
K
N
S
H
O
AB016-J-P-01
AB016-J
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
AB016-S-P-01
AB016-S
DIN 69871 AD/B hydraulic expansion chuck
Show variations
AB016-C-P-01
AB016-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
AB016-H-P-01
AB016-H
DIN 69893-1 A hydraulic expansion chuck
Show variations
AB025-J-P-01
AB025-J
MAS-BT JIS B 6339 shrink-fit adaptor
Show variations
AB025-H-P-01
AB025-H
DIN 69893-1 A shrink-fit adaptor
Show variations
AB017-J-P-01
AB017-J
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
AB017-S-P-01
AB017-S
DIN 69871 AD/B hydraulic expansion chuck
Show variations
AB025-S-P-01
AB025-S
DIN 69871 AD/B shrink-fit adaptor
Show variations
AB017-H-P-01
AB017-H
DIN 69893-1 A hydraulic expansion chuck
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W-A-C330-P-01
C330-ER40
DIN 6499 ER collets
Show variations
W A C330 P 01
C330-ER32
DIN 6499 ER collets
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
Z-SEALING-WH-P-01
Z_SEALING
Seal
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
