Products Cutting tools Milling Milling tools with indexable inserts Face milling cutters Negative indexable inserts M5012, 88° M5012-SN.X09 Cylindrical bore 0989892724
Face milling cutters

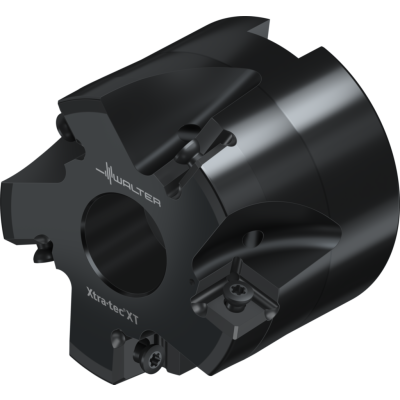

M5012-050-B22-05-08 NEW 2019

EAN-code: 0989892724
M-face-milling-finishing-Icon M-face-milling-roughing-Icon
M-Anstellw-88-Icon M-Wiper-Icon M-WSP-neg-Icon
8 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 529,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W MI M5012 B1 08 D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
50 mm
Cutting edge length
Lc
8 mm
Functional length
l4
4 mm
Tool designation
Designation
M5012-050-B22-05-08
Possible indexable inserts
Type
SN . X0904 ..; XNGX0904ZNN
Weight
WT
0,39 kg
Number of teeth
Z
5
Number of indexable inserts
No. of inserts
5 PCE
Compatible products
Products
Adaptors
Accessories
Assembly parts
SNMX-F67-ZNN-TTGPVD-P-01
SNMX-F67-ZNN
Negative square
Show variations
SNMX-F57-ZNN-TTGPVD-P-01
SNMX-F57-ZNN
Negative square
Show variations
SNMX-F57-ZNN-TTGPVD-P-01
SNMX-F27-ZNN
Negative square
Show variations
W MI SNGX ZNN F67 CU P 01
SNHX-K88-ZNN
Negative square
Show variations
W MI XNGX ZNN F67 TIGER P 01
XNGX-ZNN-F67
Finishing inserts
Show variations
SNMX-F67-ECKENRADIUS-TTGPVD-P-01
SNMX-F67 MIT ECKENRADIUS
Negative square
Show variations
SNMX-F57-ECKENRADIUS-TTGPVD-P-01
SNMX-F57 MIT ECKENRADIUS
Negative square
Show variations
W MI SNMX F27 TTG P 01
SNMX-F27 MIT ECKENRADIUS
Negative square
Show variations
SNMX-F57-ZNN-TTGPVD-P-01
SNGX-F67-ZNN
Negative square
Show variations
SNGX-F57-ZNN-TTGPVD-P-01
SNGX-F57-ZNN
Negative square
Show variations
W A AC001 SK P 01
AC001-S
SK adaptor – Vibration-damped
Show variations
W A AC001 MAS BT P 01
AC001-J
MAS-BT adaptor – Vibration-damped
Show variations
W A AC001 HSK P 01
AC001-H
HSK adaptor – Vibration-damped
Show variations
W A AC001 CAPTO P 01
AC001-C
Walter CaptoTM adaptor – vibration damped
Show variations
W A AK155 SK P 01
AK155.S
DIN 69871 AD/B shell mill arbor
Show variations
W A AK155 BT P 01
AK155.BT
MAS-BT JIS B 6339 shell mill arbor
Show variations
W A AK155 CAPTO P 01
AK155.8
Shell mill adaptor
Show variations
W A AK155 HSK P 01
AK155.7
DIN 69893-1 A shell mill arbor
Show variations
W A A155 SK P 01
A155.S
DIN69871-A shell mill arbor
Show variations
W A A155 BT P 01
A155.BT
MAS-BT JIS B 6339 shell mill arbor
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
