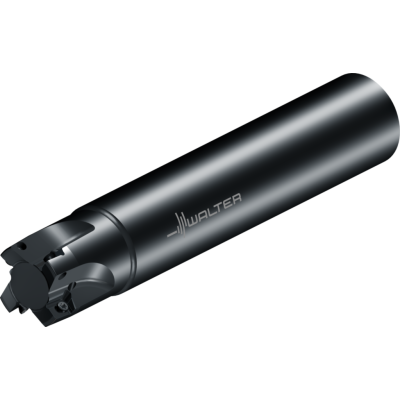

Shoulder milling cutters

M5130-016-A16-04-05

EAN-code: 0934072724
M-helical-interpolation-Icon M-pocket-milling-Icon M-ramping-Icon M-shoulder-milling-finishing-base-Icon M-shoulder-milling-rouhing-Icon
M-Anstellw-90-Icon M-WSP-pos-Icon
2 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 337,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Cutting edge length
Lc
5 mm
Number of indexable inserts
No. of inserts
4 PCE
Cutting edge diameter
Dc
16 mm
Overall length
l1
90 mm
Maximum projection length
l4
21 mm
Tool designation
Designation
M5130-016-A16-04-05
Possible indexable inserts
Type
AC .. 0602 .. R
Weight
WT
0,13 kg
Number of teeth
Z
4
Compatible products
Products
Adaptors
Accessories
Assembly parts
W MI ACMT K55 TTG P 01
ACMT-K55
Positive rhombic
Show variations
W MI ACMT G55 TTG P 01
ACMT-G55
Positive rhombic
Show variations
W MI ACHT K85 CU P 01
ACHT-M85
Positive rhombic
Show variations
W MI ACGT G65 TTG P 01
ACGT-G65
Positive rhombic
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W-A-C330-P-01
C330-ER40
DIN 6499 ER collets
Show variations
W A C330 P 01
C330-ER32
DIN 6499 ER collets
Show variations
W-A-C330-P-01
C330-ER25
DIN 6499 ER collets
Show variations
W A AK300T P 01
AK300.T
ER collet chucks
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
