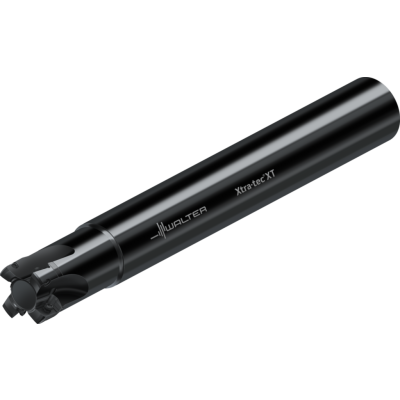

Shoulder milling cutters

M5130-025-A25-04-09 NEW 2020

EAN-code: 0934297724
M-helical-interpolation-Icon M-pocket-milling-Icon M-ramping-Icon M-shoulder-milling-finishing-base-Icon M-shoulder-milling-rouhing-Icon
M-Anstellw-90-Icon M-Wiper-Icon M-WSP-pos-Icon
2 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 390,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Technical details
Description Symbol Value
Cutting edge length
Lc
9 mm
Number of indexable inserts - face
Number of WSP
4 EA
Cutting edge diameter
Dc
25 mm
Connection diameter
d1
25
Overall length
l1
200 mm
Maximum projection length
l4
43 mm
Tool designation
Designation
M5130-025-A25-04-09
Possible indexable inserts
Type
BC .. 0903 .. R
Weight
0,68 kg
Number of teeth
Z
4
Compatible products
Products
Adaptors
Products
Accessories
Assembly parts
BCGT-B85-PCD-P-01
BCGT-B85
Positive rhombic
Show variations
P
M
K
N
S
H
O
W-MI-BCHT-K85-CU-P-01
BCGT-K85
Positive rhombic
Show variations
P
M
K
N
S
H
O
BCGX-PDR-G55-TTGPVD-P-01
BCGX-PDR-G55
Positive rhombic
Show variations
P
M
K
N
S
H
O
BCMT-K55-TTGPVD-P-01
BCMT-K55
Positive rhombic
Show variations
P
M
K
N
S
H
O
BCMT-G55-TTGPVD-P-01
BCMT-G55
Positive rhombic
Show variations
P
M
K
N
S
H
O
W MI BCMT F55 TTG P 01
BCMT-F55
Positive rhombic
Show variations
P
M
K
N
S
H
O
BCGT-G55-TTGPVD-P-01
BCGT-G55
Positive rhombic
Show variations
P
M
K
N
S
H
O
AB016-J-P-01
AB016-J
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
AB016-S-P-01
AB016-S
DIN 69871 AD/B hydraulic expansion chuck
Show variations
AB016-H-P-01
AB016-H
DIN 69893-1 A hydraulic expansion chuck
Show variations
AB025-J-P-01
AB025-J
MAS-BT JIS B 6339 shrink-fit adaptor
Show variations
AB025-H-P-01
AB025-H
DIN 69893-1 A shrink-fit adaptor
Show variations
AB017-J-P-01
AB017-J
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
AB017-S-P-01
AB017-S
DIN 69871 AD/B hydraulic expansion chuck
Show variations
AB025-S-P-01
AB025-S
DIN 69871 AD/B shrink-fit adaptor
Show variations
AB017-H-P-01
AB017-H
DIN 69893-1 A hydraulic expansion chuck
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
W-A-C330-P-01
C330-ER40
DIN 6499 ER collets
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
Z-SEALING-WH-P-01
Z_SEALING
Seal
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
