Shoulder milling cutters

M5130-160-B40-08-15

EAN-code: 0934407724
M-helical-interpolation-Icon M-pocket-milling-Icon M-ramping-Icon M-shoulder-milling-finishing-base-Icon M-shoulder-milling-rouhing-Icon
M-Anstellw-90-Icon M-Wiper-Icon M-WSP-pos-Icon
2 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 1179,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product

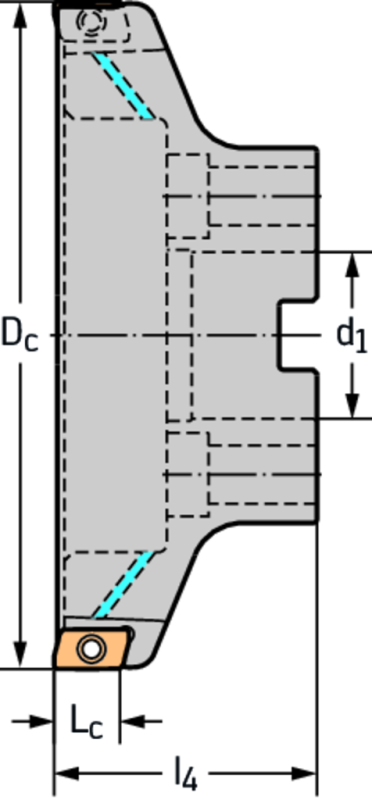

Technical details
Description Symbol Value
Cutting edge length
Lc
15 mm
Number of indexable inserts - face
Number of WSP
8 EA
Cutting edge diameter
Dc
160 mm
Connection diameter
d1
40
Maximum projection length
l4
63 mm
Tool designation
Designation
M5130-160-B40-08-15
Possible indexable inserts
Type
BC .. 1605 .. R
Weight
3,69 kg
Number of teeth
Z
8
Compatible products
Products
Adaptors
Accessories
Assembly parts
BCMT-G55-TTGPVD-P-01
BCMT-G55W
Positive rhombic
Show variations
P
M
K
N
S
H
O
BCGT-G51-TTGPVD-P-01
BCGT-G51
Positive rhombic
Show variations
P
M
K
N
S
H
O
W MI BCHT K85 CU P 01
BCHT-K85
Positive rhombic
Show variations
P
M
K
N
S
H
O
BCGX-PDR-G55-TTGPVD-P-01
BCGX-PDR-G55
Positive rhombic
Show variations
P
M
K
N
S
H
O
BCMT-K55-TTGPVD-P-01
BCMT-K55
Positive rhombic
Show variations
P
M
K
N
S
H
O
BCMT-G55-TTGPVD-P-01
BCMT-G55
Positive rhombic
Show variations
P
M
K
N
S
H
O
W MI BCMT F55 TTG P 01
BCMT-F55
Positive rhombic
Show variations
P
M
K
N
S
H
O
BCGT-G55-TTGPVD-P-01
BCGT-G55
Positive rhombic
Show variations
P
M
K
N
S
H
O
AB001-S-P-01
AB001-S
DIN 69871 AD/B shell mill arbor
Show variations
AB001-J-P-01
AB001-J
MAS-BT JIS B 6339 shell mill arbor
Show variations
AB001-H-P-01
AB001-H
DIN 69893-1 A shell mill arbor
Show variations
W-A-AK155-CAPTO-P-01
AB001-C
Shell mill adaptor
Show variations
W-EZ-Z-DISK-SET-WH-P-01
Z_DISK_SET
Seal
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
