Products Cutting tools Milling Milling tools with indexable inserts Shoulder milling cutters Positive indexable inserts M5130 and F2010, AC.., BC.. M5130-AC06 ScrewFit M5130-012-T09-03-05

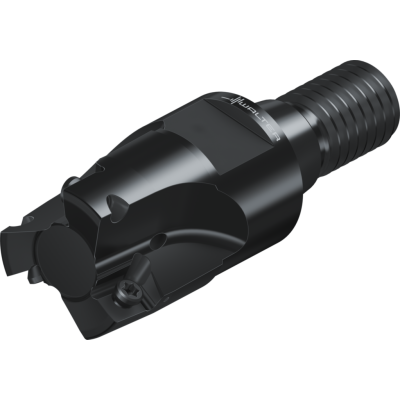

Shoulder milling cutters

M5130-012-T09-03-05

EAN-code: 0934082724
M-helical-interpolation-Icon M-pocket-milling-Icon M-ramping-Icon M-shoulder-milling-finishing-base-Icon M-shoulder-milling-rouhing-Icon
M-Anstellw-90-Icon M-WSP-pos-Icon
2 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 310,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Appendices
Technical details
W MI M5130 T D 01
Enlarge
Description Symbol Value
Cutting edge length
Lc
5 mm
Number of indexable inserts
No. of inserts
3 PCE
Cutting edge diameter
Dc
12 mm
Maximum projection length
l4
2 mm
Tool designation
Designation
M5130-012-T09-03-05
Possible indexable inserts
Type
AC .. 0602 .. R
Number of teeth
Z
3
Compatible products
Products
Adaptors
Accessories
Assembly parts
W MI ACMT K55 TTG P 01
ACMT-K55
Positive rhombic
Show variations
W MI ACMT G55 TTG P 01
ACMT-G55
Positive rhombic
Show variations
W MI ACHT K85 CU P 01
ACHT-M85
Positive rhombic
Show variations
W MI ACGT G65 TTG P 01
ACGT-G65
Positive rhombic
Show variations
W-A-AK540-BT-P-01
AK540.BT-SK40
MAS-BT JIS B 6339 adaptor
Show variations
W-A-AK510-Z-P-01
AK510.Z-A
DIN 1835 A adaptor
Show variations
W A AK540 SK P 01
AK540.S-SK40
DIN 69871 AD/B adaptor
Show variations
W-A-AK530-HSK-P-01
AK530.H63
DIN 69893-1 A adaptor
Show variations
W A AK521 T P 01
AK521.T
Reduction adaptor
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
