Shoulder milling cutters

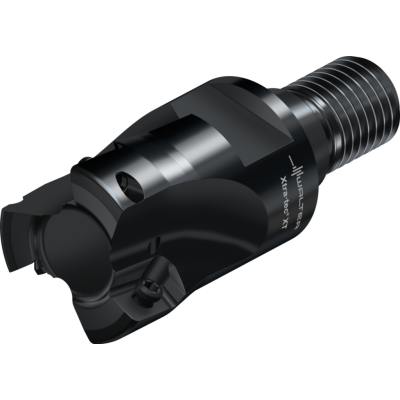

M5130-020-T18-03-09 NEW 2020

EAN-code: 0934310724
M-helical-interpolation-Icon M-pocket-milling-Icon M-ramping-Icon M-shoulder-milling-finishing-base-Icon M-shoulder-milling-rouhing-Icon
M-Anstellw-90-Icon M-Wiper-Icon M-WSP-pos-Icon
2 cutting edges per indexable insert
VAT 0% 341,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Technical details
W MI M5130 T D 01
Enlarge
Description Symbol Value
Cutting edge length
Lc
9 mm
Number of indexable inserts
No. of inserts
3 PCE
Cutting edge diameter
Dc
2 mm
Maximum projection length
l4
3 mm
Tool designation
Designation
M5130-020-T18-03-09
Possible indexable inserts
Type
BC .. 0903 .. R
Weight
WT
0,05 kg
Number of teeth
Z
3
