Shoulder milling cutters

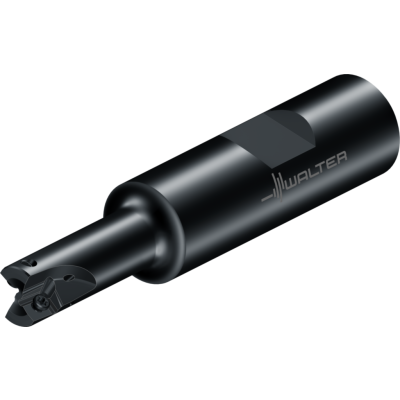

M5130-010-W16-02-05

EAN-code: 0952604724
M-helical-interpolation-Icon M-pocket-milling-Icon M-ramping-Icon M-shoulder-milling-finishing-base-Icon M-shoulder-milling-rouhing-Icon
M-Anstellw-90-Icon M-WSP-pos-Icon
2 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 274,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Appendices
Technical details
W MI M5130 W D 01
Enlarge
Description Symbol Value
Cutting edge length
Lc
5 mm
Number of indexable inserts - face
Number of WSP
2 EA
Cutting edge diameter
Dc
10 mm
Connection diameter
d1
16
Overall length
l1
80 mm
Maximum projection length
l4
30 mm
Tool designation
Designation
M5130-010-W16-02-05
Possible indexable inserts
Type
AC .. 0602 .. R
Weight
0,09 kg
Number of teeth
Z
2
