Profile milling cutters

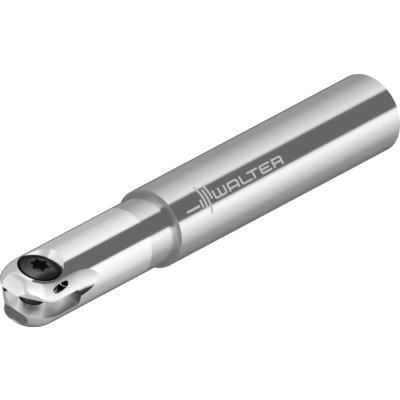

M5460-010-A10-02-05-C NEW 2023

EAN-code: 0688088727
M-copy-milling-4-Icon
M-WSP-pos-Icon
Solid carbide shank Length dimensions related to metric cutting diameters
P
M
K
N
S
H
O
VAT 0% 487,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-MI-M5460-A-D-01
Enlarge
Description Symbol Value
Number of indexable inserts
No. of inserts
1 PCE
Cutting edge diameter
Dc
10 mm
Overall length
l1
80 mm
Maximum projection length
l4
30 mm
Tool designation
Designation
M5460-010-A10-02-05-C
Radius
r
5 mm
Possible indexable inserts
Type
P320 . -D10
Weight
WT
0,04 kg
Number of teeth
Z
2
Compatible products
Products
Adaptors
Accessories
Assembly parts
W-MI-P3204-ANTHRA-P-01
P3204
Profile milling cutter inserts
Show variations
W MI P3201 ANTHRA P 01
P3201
Profile milling cutter inserts
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
