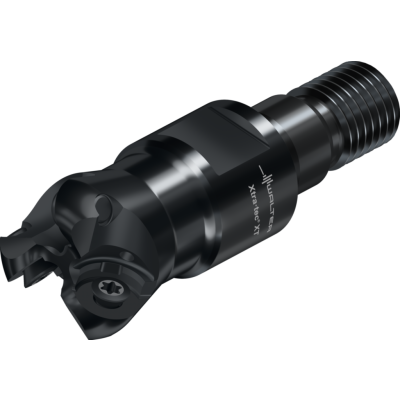

Round insert milling cutters

M5468-012-TC06-03-02.5 NEW 2021

EAN-code: 0645085727
M-copy-milling-4-Icon M-face-milling-roughing-Icon M-helical-interpolation-Icon M-pocket-milling-Icon M-ramping-Icon
M-WSP-pos-Icon
4 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 277,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Cutting edge length
Lc
2,5 mm
Connection diameter
d1
9,7
Maximum cutting diameter
Da
12 mm
Functional length
l4
20 mm
Tool designation
Designation
M5468-012-TC06-03-02.5
Radius
R
2,5 mm
Possible indexable inserts
Type
RD . X0501M0
Weight
0,01 kg
Number of teeth
Z
3
Number of indexable inserts
Number of WSP
3
Compatible products
Products
Accessories
Assembly parts
RDMX-D57-TTGPVD-P-01
RDMX-D57
Positive round
Show variations
P
M
K
N
S
H
O
W MI RDGX G88 POLIERT P 01
RDGX-G88
Positive round
Show variations
P
M
K
N
S
H
O
RDHX-A57-TTGPVD-P-01
RDHX-A57
Positive round
Show variations
P
M
K
N
S
H
O
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
