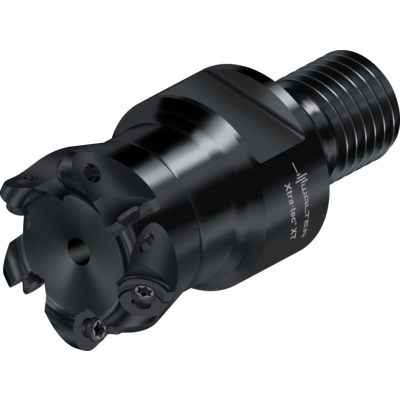

Round insert milling cutters

M5468-030-TC16-06-03.5 NEW 2021

EAN-code: 0645105727
M-copy-milling-4-Icon M-face-milling-roughing-Icon M-helical-interpolation-Icon M-pocket-milling-Icon M-ramping-Icon
M-WSP-pos-Icon
4 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 395,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W MI M5468 TC 05 D 01 2019
Enlarge
Description Symbol Value
Cutting edge length
Lc
3,5 mm
Maximum cutting diameter
Da
30 mm
Functional length
l4
4 mm
Tool designation
Designation
M5468-030-TC16-06-03.5
Radius
r
3,5 mm
Possible indexable inserts
Type
RD . X07T1M0
Weight
WT
0,17 kg
Number of teeth
Z
6
Number of indexable inserts
No. of inserts
6 PCE
Compatible products
Products
Accessories
Assembly parts
RDMX-D57-TTGPVD-P-01
RDMX-D57
Positive round
Show variations
W MI RDGX G88 POLIERT P 01
RDGX-G88
Positive round
Show variations
RDHX-A57-TTGPVD-P-01
RDHX-A57
Positive round
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
