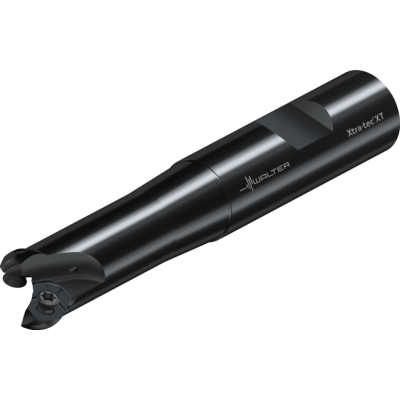

Round insert milling cutters

M5468-016-W16-02-04 NEW 2021

EAN-code: 0645110727
M-copy-milling-4-Icon M-face-milling-roughing-Icon M-helical-interpolation-Icon M-pocket-milling-Icon M-ramping-Icon
M-WSP-pos-Icon
4 cutting edges per indexable insert With indexing surfaces
P
M
K
N
S
H
O
VAT 0% 280,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W MI F2334 W D 01
Enlarge
Description Symbol Value
Cutting edge length
Lc
4 mm
Maximum cutting diameter
Da
16 mm
Overall length
l1
100 mm
Functional length
l4
51 mm
Tool designation
Designation
M5468-016-W16-02-04
Radius
r
4 mm
Possible indexable inserts
Type
RO . X0803M0
Weight
WT
0,13 kg
Number of teeth
Z
2
Number of indexable inserts
No. of inserts
2 PCE
Compatible products
Products
Adaptors
Accessories
Assembly parts
ROMX-D57-TTGPVD-P-01
ROHX-4-D67
Positive round
Show variations
ROMX-D57-TTGPVD-P-01
ROHX-4-D57
Positive round
Show variations
W-MI-ROGX-8-G88-POL-P-01
ROGX-4-G88
Positive round
Show variations
ROMX-D57-TTGPVD-P-01
ROMX-4-D57
Positive round
Show variations
ROHX-4-A57-TTGPVD-P-01
ROHX-4-A57
Positive round
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A A170M NCT P 01
A170M.0
Weldon shank adaptor
Show variations
W-A-C330-P-01
C330-ER40
DIN 6499 ER collets
Show variations
W A C330 P 01
C330-ER32
DIN 6499 ER collets
Show variations
W-A-C330-P-01
C330-ER25
DIN 6499 ER collets
Show variations
W A 391 20 CAPTO P 01
391.20-CAPTO
Weldon shank adaptor
Show variations
W A AK300T P 01
AK300.T
ER collet chucks
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK170 SK P 01
AK170.S
DIN 69871 AD/B Weldon adaptor
Show variations
W A AK170 BT P 01
AK170.BT
MAS-BT JIS B 6339 Weldon adaptor
Show variations
W A A170 HSK P 01
A170.7
DIN 69893-1 A Weldon adaptor
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
