Products Cutting tools Milling End mills High-Feed milling cutters MC025 Advance MC025-06.0A4B050-WJ30TF

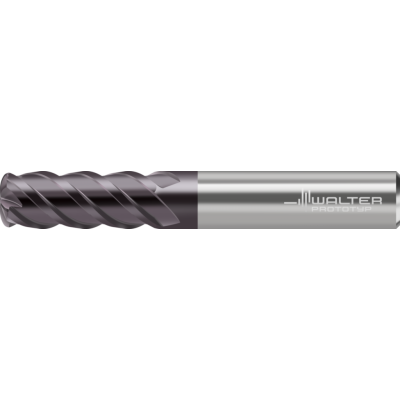

Solid carbide high-feed milling cutter

MC025-06.0A4B050-WJ30TF

EAN-code: 4042446303068
M-helical-interpolation-Icon M-plunging-open-Icon M-pocket-milling-Icon M-ramping-Icon
D-M-Z2-4-Icon M-55HRC-Icon M-ohneZentrums-Icon M-Spiralw-50-Icon Recon-Icon
P
M
K
N
S
H
O
VAT 0% 78,60 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P MR MC025 A D R D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
6 mm
Connection diameter
d1
6
Usable length
l3
15 mm
Overall length
l1
57 mm
Maximum overhang
l4
21 mm
Tool designation
Designation
MC025-06.0A4B050-WJ30TF
Radius
Rf
3 mm
Radius
R
0,5 mm
Offset radius
xf
1,4 mm
Equivalent radius
Rers
0,755 mm
Number of teeth
Z
4
Compatible products
Adaptors
AB016-J-P-01
AB016-J
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
AB016-S-P-01
AB016-S
DIN 69871 AD/B hydraulic expansion chuck
Show variations
AB016-C-P-01
AB016-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
AB016-H-P-01
AB016-H
DIN 69893-1 A hydraulic expansion chuck
Show variations
AB025-J-P-01
AB025-J
MAS-BT JIS B 6339 shrink-fit adaptor
Show variations
AB025-H-P-01
AB025-H
DIN 69893-1 A shrink-fit adaptor
Show variations
AB017-J-P-01
AB017-J
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
AB017-S-P-01
AB017-S
DIN 69871 AD/B hydraulic expansion chuck
Show variations
AB025-S-P-01
AB025-S
DIN 69871 AD/B shrink-fit adaptor
Show variations
AB017-H-P-01
AB017-H
DIN 69893-1 A hydraulic expansion chuck
Show variations
SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
