Products Cutting tools Milling End mills High-Feed milling cutters MC025 Advance MC025-10.0A4B150-WJ30TF

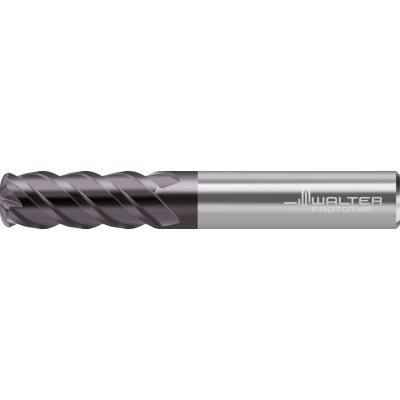

Solid carbide high-feed milling cutter

MC025-10.0A4B150-WJ30TF

EAN-code: 4042446303082
M-helical-interpolation-Icon M-plunging-open-Icon M-pocket-milling-Icon M-ramping-Icon
D-M-Z2-4-Icon M-55HRC-Icon M-ohneZentrums-Icon M-Spiralw-50-Icon Recon-Icon
P
M
K
N
S
H
O
VAT 0% 142,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P MR MC025 A D R D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
10 mm
Connection diameter
d1
10
Usable length
l3
26 mm
Overall length
l1
72 mm
Maximum overhang
l4
32 mm
Tool designation
Designation
MC025-10.0A4B150-WJ30TF
Radius
Rf
5 mm
Radius
R
1,5 mm
Offset radius
xf
1,7 mm
Equivalent radius
Rers
1,998 mm
Number of teeth
Z
4
Compatible products
Adaptors
AB016-J-P-01
AB016-J
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
AB016-S-P-01
AB016-S
DIN 69871 AD/B hydraulic expansion chuck
Show variations
AB016-C-P-01
AB016-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
AB016-H-P-01
AB016-H
DIN 69893-1 A hydraulic expansion chuck
Show variations
AB025-J-P-01
AB025-J
MAS-BT JIS B 6339 shrink-fit adaptor
Show variations
AB025-H-P-01
AB025-H
DIN 69893-1 A shrink-fit adaptor
Show variations
AB017-J-P-01
AB017-J
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
AB017-S-P-01
AB017-S
DIN 69871 AD/B hydraulic expansion chuck
Show variations
AB025-S-P-01
AB025-S
DIN 69871 AD/B shrink-fit adaptor
Show variations
AB017-H-P-01
AB017-H
DIN 69893-1 A hydraulic expansion chuck
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
