Products Cutting tools Milling Milling tools High-Feed milling cutters MC089 Advance 4042446281250

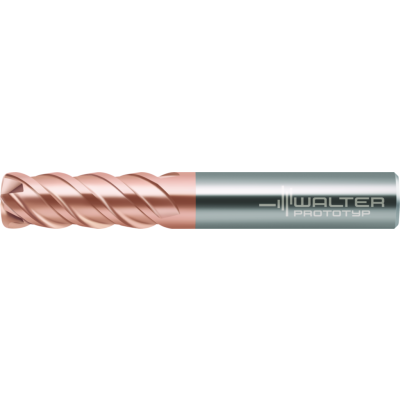

Solid carbide high-feed milling cutter

MC089-10.0A4B150-WB10TG

EAN-code: 4042446281250
M-plunging-open-Icon M-helical-interpolation-Icon M-pocket-milling-Icon M-ramping-Icon
D-M-Z4-Icon M-ohneZentrums-Icon M-Spiralw-50-Icon Recon-Icon Tr-48-63HRC-Icon
P
M
K
N
S
H
O
VAT 0% 153,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P MR MC089 A 4 B R D 01
Enlarge
Description Symbol Value
Correction for average
apf
0,3 mm
Cutting edge diameter
Dc
1 mm
Shank diameter
d1
1 mm
Cutting edge length
Lc
26 mm
Overall length
l1
72 mm
maximum overhang
l4
32 mm
Tool designation
Designation
MC089-10.0A4B150-WB10TG
Radius
Rf
15 mm
Radius
r
1,5 mm
Offset radius
xf
0,8 mm
Equivalent radius
Rers
1,773 mm
Number of teeth
Z
4
Compatible products
Adaptors
W-A-SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
