Products Cutting tools Milling Milling tools Shoulder/slot milling cutters Finishing cutters Milling cutters MC128 Advance 4042446307042

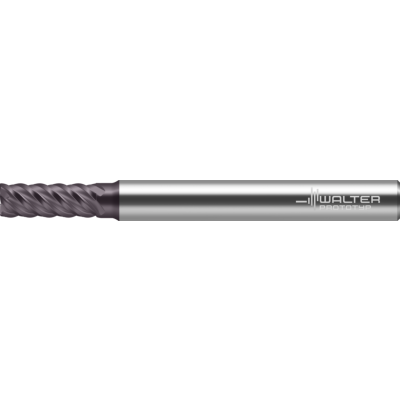

Solid carbide shoulder milling cutters

MC128-05.0A5B-WJ30TF NEW 2020

EAN-code: 4042446307042
M-dynamic-milling-Icon M-shoulder-milling-finishing-wall-Icon M-helical-interpolation-Icon M-pocket-milling-Icon M-shoulder-milling-wall-Icon
D-M-Z4-8-Icon M-48HRC-Icon M-ohneZentrums-Icon M-Spiralw-50-Icon Recon-Icon
Type N 50
P
M
K
N
S
H
O
VAT 0% 58,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P MR MC128 A B D 01
Enlarge
Description Symbol Value
Cutting edge length
Lc
13 mm
Corner chamfer width
l11
0,1 mm
Cutting edge diameter
Dc
5 mm
Shank diameter
d1
6 mm
Overall length
l1
57 mm
Functional length
l4
21 mm
Tool designation
Designation
MC128-05.0A5B-WJ30TF
Number of teeth
Z
5
Compatible products
Adaptors
W-A-SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
