Solid carbide shoulder milling cutters

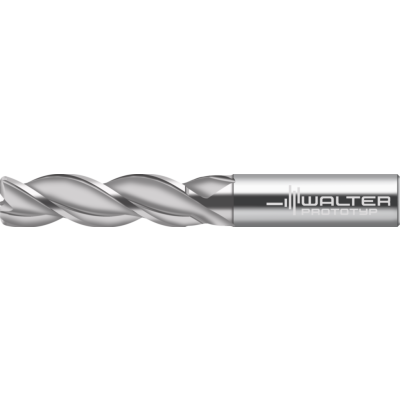

MC166-12.0A3L400D-WJ30UU NEW 2022

EAN-code: 4042446315481
M-dynamic-milling-Icon M-helical-interpolation-Icon M-ramping-Icon M-shoulder-milling-finishing-wall-Icon M-shoulder-milling-wall-Icon
D-M-Z3-Icon M-ohneZentrums-Icon M-Spiralw-35-Icon Recon-Icon
Long reach
P
M
K
N
S
H
O
VAT 0% 184,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P MR MC166 A 3 L R D D 01
Enlarge
Description Symbol Value
Cutting edge length
Lc
42 mm
Cutting edge diameter
Dc
12 mm
Shank diameter
d1
12 mm
Body diameter
d2
11,4 mm
Useable length
l3
52 mm
Overall length
l1
100 mm
Functional length
l4
55 mm
Tool designation
Designation
MC166-12.0A3L400D-WJ30UU
Radius
r
4 mm
Number of teeth
Z
3
Compatible products
Adaptors
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
