Products Cutting tools Milling Milling tools Shoulder/slot milling cutters Roughing/finishing cutters Milling cutters with corner radius Advance MC267 Advance, without corner radius, Z=3 Solid carbide shoulder milling cutters MC166 4042446315603

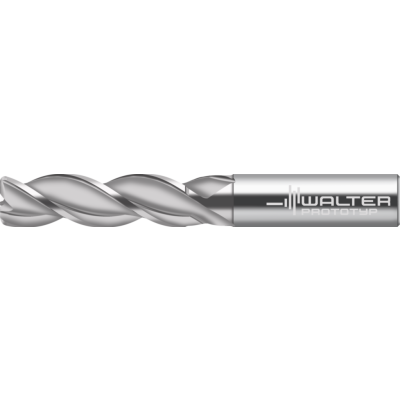

Solid carbide shoulder milling cutters

MC166-16.0A3L300D-WJ30UU NEW 2022

EAN-code: 4042446315603
M-dynamic-milling-Icon M-helical-interpolation-Icon M-ramping-Icon M-shoulder-milling-finishing-wall-Icon M-shoulder-milling-wall-Icon
D-M-Z3-Icon M-ohneZentrums-Icon M-Spiralw-35-Icon Recon-Icon
Long reach
P
M
K
N
S
H
O
VAT 0% 292,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P MR MC166 A 3 L R D D 01
Enlarge
Description Symbol Value
Cutting edge length
Lc
56 mm
Cutting edge diameter
Dc
16 mm
Shank diameter
d1
16 mm
Body diameter
d2
15,2 mm
Useable length
l3
7 mm
Overall length
l1
121 mm
Functional length
l4
73 mm
Tool designation
Designation
MC166-16.0A3L300D-WJ30UU
Radius
r
3 mm
Number of teeth
Z
3
Compatible products
Adaptors
W-A-SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
