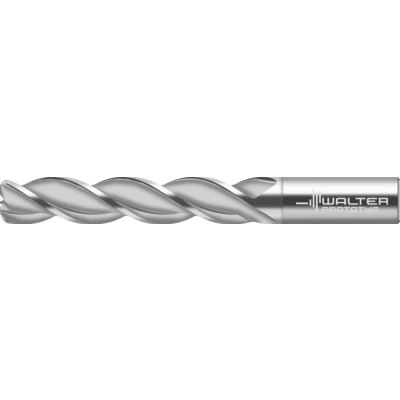

Solid carbide shoulder milling cutters

MC166-20.0A3X300L-WJ30UU NEW 2022

EAN-code: 4042446315658
M-dynamic-milling-Icon M-helical-interpolation-Icon M-ramping-Icon M-shoulder-milling-finishing-wall-Icon M-shoulder-milling-wall-Icon
D-M-Z3-Icon M-ohneZentrums-Icon M-Spiralw-35-Icon Recon-Icon
P
M
K
N
S
H
O
VAT 0% 477,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P MR MC166 A 3 X R L D 01
Enlarge
Description Symbol Value
Cutting edge length
Lc
100 mm
Cutting edge diameter
Dc
20 mm
Shank diameter
d1
20 mm
Overall length
l1
171 mm
Functional length
l4
121 mm
Tool designation
Designation
MC166-20.0A3X300L-WJ30UU
Radius
r
3 mm
Number of teeth
Z
3
Compatible products
Adaptors
W-A-SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
