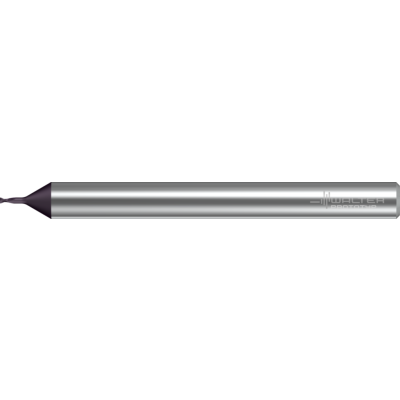

Solid carbide shoulder/slot milling cutters

MC213-01.0A2L010C-WJ30TF

EAN-code: 4042446255909
M-helical-interpolation-Icon M-pocket-milling-Icon M-ramping-Icon M-slot-milling-Icon
D-M-Z2-Icon M-48HRC-Icon M-Spiralw-30-Icon M-Zentrumsschneide-Icon Recon-Icon
Long reach Type HSC 30, long
P
M
K
N
S
H
O
VAT 0% 80,20 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P MR MC213 A 2 L R N D 01
Enlarge
Description Symbol Value
Cutting edge length
Lc
1 mm
Cutting edge diameter
Dc
1 mm
Shank diameter
d1
6 mm
Body diameter
d2
1 mm
Useable length
l3
4 mm
Overall length
l1
65 mm
Functional length
l4
29 mm
Tool designation
Designation
MC213-01.0A2L010C-WJ30TF
Radius
r
0,1 mm
Number of teeth
Z
2
Compatible products
Adaptors
W-A-SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
