Products Cutting tools Milling Milling tools Shoulder/slot milling cutters Roughing/finishing cutters Milling cutters Advance MC213 Advance MC213-A-2-X 4042446255152

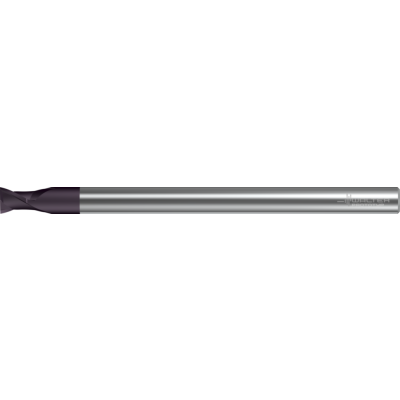

Solid carbide shoulder/slot milling cutters

MC213-14.5A2X-WJ30TF

EAN-code: 4042446255152
M-helical-interpolation-Icon M-pocket-milling-Icon M-ramping-Icon M-slot-milling-Icon
D-M-Z2-Icon M-48HRC-Icon M-Spiralw-30-Icon M-Zentrumsschneide-Icon Recon-Icon
Long reach Type HSC 30, long
P
M
K
N
S
H
O
VAT 0% 223,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P-MR-MC213-A-2-X-D-01
Enlarge
Description Symbol Value
Cutting edge length
Lc
14 mm
Corner chamfer width
l11
0,15 mm
Cutting edge diameter
Dc
14,5 mm
Shank diameter
d1
14 mm
Overall length
l1
150 mm
Functional length
l4
105 mm
Tool designation
Designation
MC213-14.5A2X-WJ30TF
Number of teeth
Z
2
Compatible products
Adaptors
W-A-SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
