Solid carbide shoulder/slot milling cutters

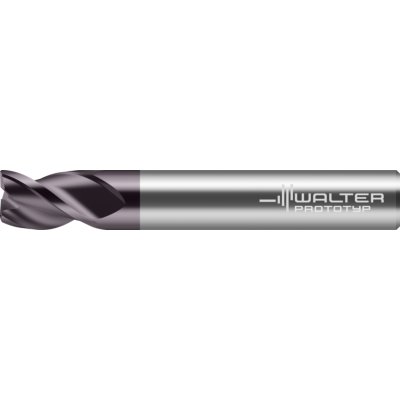

MC230-06.0A3S-WK40TF NEW 2023

EAN-code: 4063464771141
M-helical-interpolation-Icon M-pocket-milling-Icon M-ramping-Icon M-slot-milling-Icon
D-M-Z3-Icon M-48HRC-Icon M-Spiralw-38-Icon M-Zentrumsschneide-Icon Recon-Icon
P
M
K
N
S
H
O
VAT 0% 28,90 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P-MR-MC230-A-3-S-D-01
Enlarge
Description Symbol Value
Cutting edge length
Lc
7 mm
Corner chamfer width
l11
0,1 mm
Cutting edge diameter
Dc
6 mm
Shank diameter
d1
6 mm
Overall length
l1
39 mm
Functional length
l4
12 mm
Tool designation
Designation
MC230-06.0A3S-WK40TF
Number of teeth
Z
3
Compatible products
Adaptors
W-A-SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
