Products Cutting tools Milling Milling tools Shoulder/slot milling cutters Roughing/finishing cutters Milling cutters Advance MC230 Advance, without corner radius, Z=4, DIN 652 MC230-W-4-B-C, z=4, ~2xDc (l3=3xDc) 4042446314859

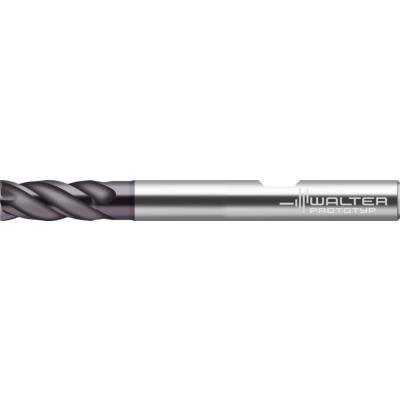

Solid carbide shoulder/slot milling cutters

MC230-07.0W4BC-WK40TF NEW 2021

EAN-code: 4042446314859
M-dynamic-milling-Icon M-helical-interpolation-Icon M-pocket-milling-Icon M-ramping-Icon M-slot-milling-Icon
D-M-Z4-Icon M-48HRC-Icon M-Spiralw-35-38-Icon M-Zentrumsschneide-Icon Recon-Icon
Long reach
P
M
K
N
S
H
O
VAT 0% 53,50 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P MR MC230 W 4 B C D 01
Enlarge
Description Symbol Value
Cutting edge length
Lc
16 mm
Corner chamfer width
l11
0,1 mm
Cutting edge diameter
Dc
7 mm
Shank diameter
d1
8 mm
Body diameter
d2
6,7 mm
Useable length
l3
25 mm
Overall length
l1
63 mm
Functional length
l4
27 mm
Tool designation
Designation
MC230-07.0W4BC-WK40TF
Number of teeth
Z
4
Compatible products
Adaptors
W-A-SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W-A-C330-P-01
C330-ER40
DIN 6499 ER collets
Show variations
W A C330 P 01
C330-ER32
DIN 6499 ER collets
Show variations
W-A-C330-P-01
C330-ER25
DIN 6499 ER collets
Show variations
W-A-C330-P-01
C330-ER20
DIN 6499 ER collets
Show variations
W-A-C330-P-01
C330-ER16
DIN 6499 ER collets
Show variations
W A 391 20 CAPTO P 01
391.20-CAPTO
Weldon shank adaptor
Show variations
W A 391 14 CAPTO P 01
391.14-CAPTO
ER collet chucks
Show variations
W A AK300T P 01
AK300.T
ER collet chucks
Show variations
W A AK300 SK P 01
AK300.S
DIN 69871 A ER collet chuck
Show variations
W A AK300 BT P 01
AK300.BT
MAS-BT JIS B 6339 ER collet chuck
Show variations
W A AK300M HSK P 01
AK300.7
DIN 69893-1 A ER collet chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK170 SK P 01
AK170.S
DIN 69871 AD/B Weldon adaptor
Show variations
W A AK170 BT P 01
AK170.BT
MAS-BT JIS B 6339 Weldon adaptor
Show variations
W A A305 P 01
A305.0
DIN 1835 B ER collet chuck
Show variations
W A A170 HSK P 01
A170.7
DIN 69893-1 A Weldon adaptor
Show variations
