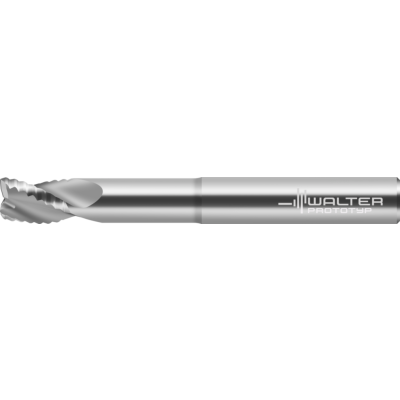

Solid carbide shoulder/slot milling cutters

MC268-08.0A3LC-WJ30UU NEW 2022

EAN-code: 4063464227471
M-helical-interpolation-Icon M-pocket-milling-Icon M-ramping-Icon M-slot-milling-Icon
D-M-Z3-Icon M-ohneZentrums-Icon M-Spiralw-30-Icon Recon-Icon
P
M
K
N
S
H
O
VAT 0% 88,30 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P-MR-MC268-A-L-C-D-01
Enlarge
Description Symbol Value
Cutting edge length
Lc
12 mm
Corner chamfer width
l11
0,32 mm
Cutting edge diameter
Dc
8 mm
Shank diameter
d1
8 mm
Body diameter
d2
7,5 mm
Useable length
l3
29 mm
Overall length
l1
72 mm
Functional length
l4
36 mm
Tool designation
Designation
MC268-08.0A3LC-WJ30UU
Number of teeth
Z
3
