4042446292270

P-MR-MC319-W-4-B-C-WK40TF-P-01 image

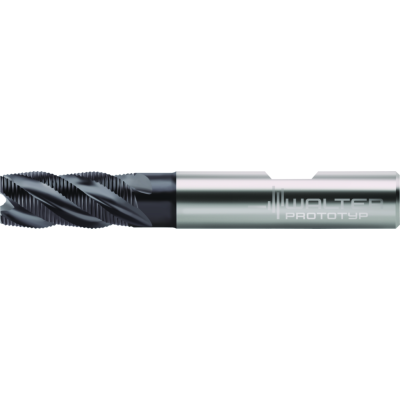

Solid carbide shoulder/slot milling cutter

MC319-11.0W4BC-WK40TF

EAN-code: 4042446292270

M-helical-interpolation-Icon

M-pocket-milling-Icon

M-slot-milling-Icon

M-ohneZentrums-Icon

M-Spiralw-40-Icon

Long reach

P

M

K

N

S

H

O

VAT 0% 194,00 €

Checking availability

You need to log in before purchasing. Request credentials here.

Ask about this product

Ask about this product

Technical details

P MR MC319 W 4 B C WK40TF D 01

Description Symbol Value

Cutting edge length

L_c

26 mm

Cutting edge diameter

D_c

11 mm

Shank diameter

d₁

12 mm

Body diameter

d₂

10,4 mm

Useable length

l₃

35 mm

Overall length

l₁

83 mm

Functional length

l₄

38 mm

Tool designation

Designation

MC319-11.0W4BC-WK40TF

Number of teeth

Z

4

Compatible products

Adaptors

W-A-FS2226-P-01

REDUZIERHUELSE-IK

Adaptor sleeves for internal cooling

AB019-H

DIN 69893-1 A slim hydraulic expansion chuck

W A A170M NCT P 01

A170M.0

Weldon shank adaptor

W-A-C330-P-01

C330-ER40

DIN 6499 ER collets

W A C330 P 01

C330-ER32

DIN 6499 ER collets

W-A-C330-P-01

C330-ER25

DIN 6499 ER collets

W-A-C330-P-01

C330-ER20

DIN 6499 ER collets

W A 391 20 CAPTO P 01

391.20-CAPTO

Weldon shank adaptor

W A AK300T P 01

AK300.T

ER collet chucks

W A AK182 SK P 01

AK182-SK

DIN 69871 hydraulic expansion chuck

W A AK182 HSK P 01

AK182-HSK

DIN 69893-1 A hydraulic expansion chuck

W A AK182 CAPTO P 01

AK182-C

Walter Capto^TM hydraulic expansion chuck ISO 26623-1

W A AK182 BT P 01

AK182-BT

MAS-BT JIS B 6339 hydraulic expansion chuck

W A AK170 SK P 01

AK170.S

DIN 69871 AD/B Weldon adaptor

W A AK170 BT P 01

AK170.BT

MAS-BT JIS B 6339 Weldon adaptor

W A A170 HSK P 01

A170.7

DIN 69893-1 A Weldon adaptor
