Solid carbide shoulder/slot milling cutters

MC341-16.0A4P-WK40TZ

EAN-code: 4042446267452
M-helical-interpolation-Icon M-pocket-milling-Icon M-ramping-Icon M-slot-milling-Icon
D-M-Z4-Icon M-55HRC-Icon M-Spiralw-50-Icon M-Zentrumsschneide-Icon Recon-Icon
P
M
K
N
S
H
O
VAT 0% 280,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details

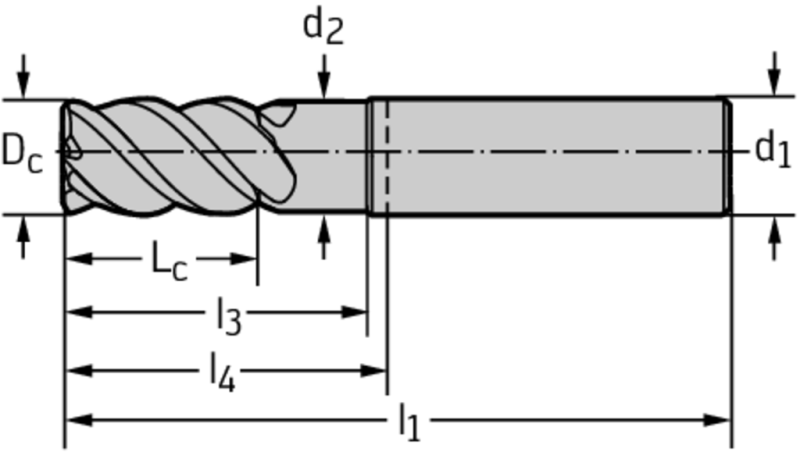

P MR H4034217 DIN6535HA D 01
Enlarge
Description Symbol Value
Cutting edge length
Lc
26 mm
Corner chamfer width
l11
0,15 mm
Cutting edge diameter
Dc
16 mm
Shank diameter
d1
16 mm
Body diameter
d2
15,2 mm
Useable length
l3
42 mm
Overall length
l1
92 mm
Functional length
l4
44 mm
Tool designation
Designation
MC341-16.0A4P-WK40TZ
Number of teeth
Z
4
Compatible products
Adaptors
W-A-SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
