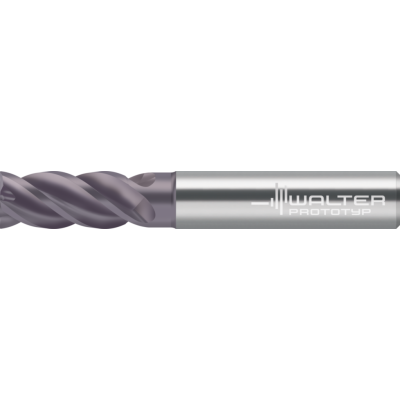

Solid carbide shoulder/slot milling cutter

MC377-10.0A4BC-WK40EA NEW 2020

EAN-code: 4042446309077
M-helical-interpolation-Icon M-pocket-milling-Icon M-ramping-Icon M-slot-milling-Icon
D-M-Z3-4-Icon M-Spiralw-40-Icon M-Zentrumsschneide-Icon Recon-Icon
Type Ti 40 Long reach
P
M
K
N
S
H
O
VAT 0% 120,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P MR MC377 A B C D 01
Enlarge
Description Symbol Value
Cutting edge length
Lc
22 mm
Corner chamfer width
l11
0,1 mm
Cutting edge diameter
Dc
10 mm
Shank diameter
d1
10 mm
Body diameter
d2
9,5 mm
Useable length
l3
3 mm
Overall length
l1
72 mm
Functional length
l4
32 mm
Tool designation
Designation
MC377-10.0A4BC-WK40EA
Number of teeth
Z
4
Compatible products
Adaptors
W-A-SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
