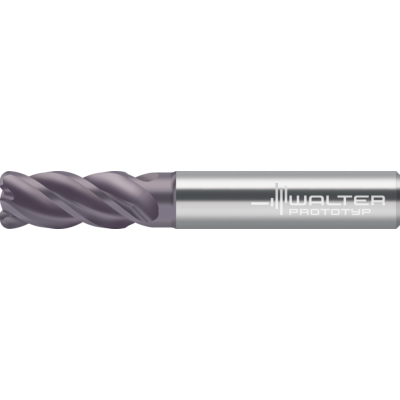

Solid carbide shoulder/slot milling cutter

MC377-25.0A4B400C-WK40EA NEW 2020

EAN-code: 4042446309305
M-helical-interpolation-Icon M-pocket-milling-Icon M-ramping-Icon M-slot-milling-Icon
D-M-Z3-4-Icon M-Spiralw-40-Icon M-Zentrumsschneide-Icon Recon-Icon
Type Ti 40 Long reach
P
M
K
N
S
H
O
VAT 0% 529,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P MR MC377 A B R C D 01
Enlarge
Description Symbol Value
Cutting edge length
Lc
45 mm
Cutting edge diameter
Dc
25 mm
Shank diameter
d1
25 mm
Body diameter
d2
23,8 mm
Useable length
l3
63 mm
Overall length
l1
121 mm
Functional length
l4
65 mm
Tool designation
Designation
MC377-25.0A4B400C-WK40EA
Radius
r
4 mm
Number of teeth
Z
4
Compatible products
Adaptors
W-A-SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
W-A-C330-P-01
C330-ER40
DIN 6499 ER collets
Show variations
W A 391 14 CAPTO P 01
391.14-CAPTO
ER collet chucks
Show variations
W A AK300 SK P 01
AK300.S
DIN 69871 A ER collet chuck
Show variations
W A AK300 BT P 01
AK300.BT
MAS-BT JIS B 6339 ER collet chuck
Show variations
W A AK300M HSK P 01
AK300.7
DIN 69893-1 A ER collet chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
