Products Cutting tools Milling Milling tools Shoulder/slot milling cutters Roughing/finishing cutters Milling cutters with corner radius Advance MC388 Advance MC388-A-L-R 4042446282042

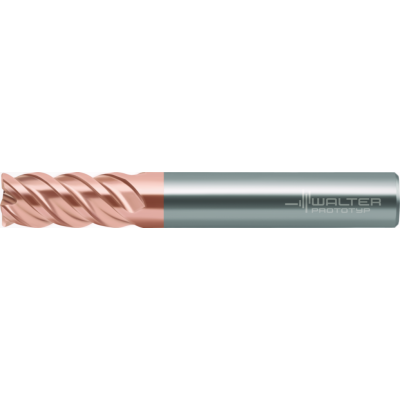

Solid carbide shoulder/slot milling cutter

MC388-12.0A4L200-WB10TG

EAN-code: 4042446282042
M-helical-interpolation-Icon M-pocket-milling-Icon M-ramping-Icon M-slot-milling-Icon
D-M-Z3-4-Icon M-Spiralw-50-Icon M-Zentrumsschneide-Icon Tr-48-63HRC-Icon
P
M
K
N
S
H
O
VAT 0% 201,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P MR MC388 A L R D 01
Enlarge
Description Symbol Value
Cutting edge length
Lc
26 mm
Cutting edge diameter
Dc
12 mm
Shank diameter
d1
12 mm
Overall length
l1
100 mm
Functional length
l4
55 mm
Tool designation
Designation
MC388-12.0A4L200-WB10TG
Radius
r
2 mm
Number of teeth
Z
4
Compatible products
Adaptors
W-A-SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
