Products Cutting tools Milling Milling tools Ball-nose copy milling cutters MC413 Advance MC413-A-L 4042446269630

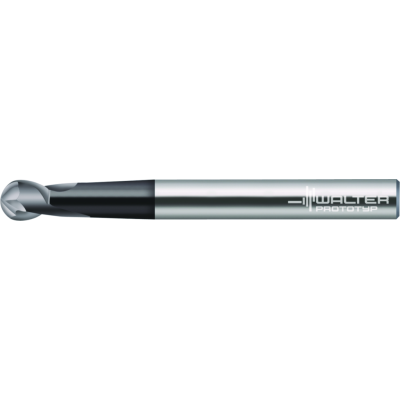

Solid carbide ball-nose copy milling cutters

MC413-10.0A2L-WJ30TF

EAN-code: 4042446269630
M-copy-milling-4-Icon
D-M-Z2-Icon M-48HRC-Icon M-Spiralw-30-Icon Recon-Icon
Long reach Type HSC 30
P
M
K
N
S
H
O
VAT 0% 140,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P MR MC413 A L D 01
Enlarge
Description Symbol Value
Useable length
l3
43 mm
Cutting edge length
Lc
11 mm
Cutting edge diameter
Dc
10 mm
Shank diameter
d1
1 mm
Body diameter
d2
8,2 mm
Overall length
l1
100 mm
Functional length
l4
60 mm
Tool designation
Designation
MC413-10.0A2L-WJ30TF
Shank diameter length
Lc2
3 mm
Radius
r
5 mm
Number of teeth
Z
2
Compatible products
Adaptors
W-A-SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
