Products Cutting tools Milling Milling tools Ball-nose copy milling cutters MC416 Advance MC416-A-2-B 4042446269821

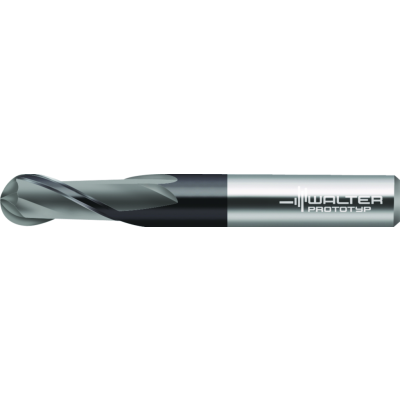

Solid carbide ball-nose copy milling cutters

MC416-02.0A2B-WJ30TF

EAN-code: 4042446269821
M-copy-milling-4-Icon
D-M-Z2-Icon M-48HRC-Icon M-Spiralw-30-Icon
P
M
K
N
S
H
O
VAT 0% 61,40 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P MR MC416 A 2 B D 01
Enlarge
Description Symbol Value
Cutting edge length
Lc
6 mm
Cutting edge diameter
Dc
2 mm
Connection diameter
d1
3 mm
Overall length
l1
38 mm
Functional length
l4
10,6 mm
Tool designation
Designation
MC416-02.0A2B-WJ30TF
Radius
r
1 mm
Number of teeth
Z
2
