Products Cutting tools Milling Milling tools Ball-nose copy milling cutters MC416 Advance MC416-A-2-B 4042446270018

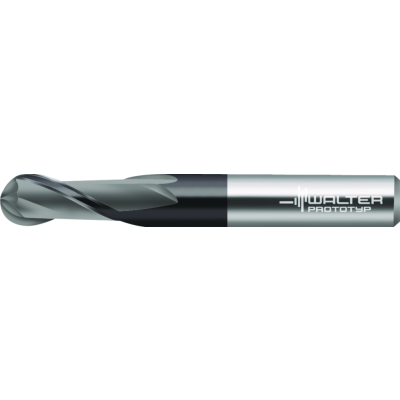

Solid carbide ball-nose copy milling cutters

MC416-09.0A2B-WJ30TF

EAN-code: 4042446270018
M-copy-milling-4-Icon
D-M-Z2-Icon M-48HRC-Icon M-Spiralw-30-Icon
P
M
K
N
S
H
O
VAT 0% 98,20 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P MR MC416 A 2 B D 01
Enlarge
Description Symbol Value
Cutting edge length
Lc
16 mm
Cutting edge diameter
Dc
9 mm
Connection diameter
d1
1 mm
Overall length
l1
72 mm
Functional length
l4
32,1 mm
Tool designation
Designation
MC416-09.0A2B-WJ30TF
Radius
r
4,5 mm
Number of teeth
Z
2
Compatible products
Adaptors
W-A-SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
