Products Cutting tools Milling Milling tools Ball-nose copy milling cutters MC416 Advance MC416-A-4-L 4042446270049

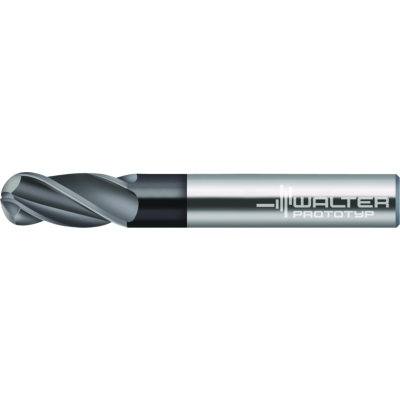

Solid carbide ball-nose copy milling cutters

MC416-10.0A4L-WJ30TF

EAN-code: 4042446270049
M-copy-milling-4-Icon
D-M-Z4-Icon M-48HRC-Icon M-Spiralw-30-Icon Recon-Icon
Type 30
P
M
K
N
S
H
O
VAT 0% 141,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P MR MC416 A 4 L D 01
Enlarge
Description Symbol Value
Cutting edge length
Lc
22 mm
Cutting edge diameter
Dc
10 mm
Connection diameter
d1
1 mm
Overall length
l1
100 mm
Functional length
l4
60 mm
Tool designation
Designation
MC416-10.0A4L-WJ30TF
Radius
r
5 mm
Number of teeth
Z
4
Compatible products
Adaptors
W-A-SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
