Products Cutting tools Milling Milling tools Ball-nose copy milling cutters MC480 Advance MC480-A-2-M-N 4042446282295

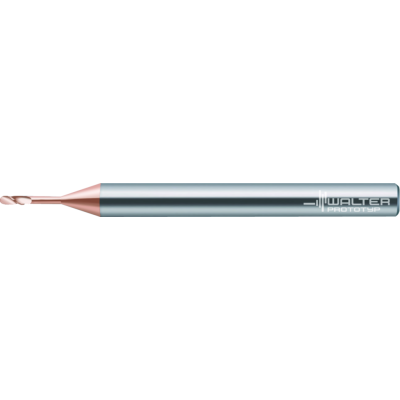

Solid carbide ball-nose copy milling cutters

MC480-01.0A2ME-WB10TG

EAN-code: 4042446282295
M-copy-milling-4-Icon
D-M-Z2-Icon M-Spiralw-30-Icon Recon-Icon Tr-48-63HRC-Icon
Long reach
P
M
K
N
S
H
O
VAT 0% 87,70 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P MR MC480 A 2 M N D 01
Enlarge
Description Symbol Value
Useable length
l3
5 mm
Cutting edge length
Lc
0,8 mm
Cutting edge diameter
Dc
1 mm
Shank diameter
d1
4 mm
Body diameter
d2
0,97 mm
Overall length
l1
50 mm
Functional length
l4
22 mm
Tool designation
Designation
MC480-01.0A2ME-WB10TG
Radius
r
0,5 mm
Number of teeth
Z
2
Compatible products
Adaptors
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W-A-C330-P-01
C330-ER40
DIN 6499 ER collets
Show variations
W A C330 P 01
C330-ER32
DIN 6499 ER collets
Show variations
W-A-C330-P-01
C330-ER25
DIN 6499 ER collets
Show variations
W-A-C330-P-01
C330-ER20
DIN 6499 ER collets
Show variations
W-A-C330-P-01
C330-ER16
DIN 6499 ER collets
Show variations
W-A-C330-P-01
C330-ER11
DIN 6499 ER collets
Show variations
W A 391 14 CAPTO P 01
391.14-CAPTO
ER collet chucks
Show variations
W A AK300T P 01
AK300.T
ER collet chucks
Show variations
W A AK300 SK P 01
AK300.S
DIN 69871 A ER collet chuck
Show variations
W A AK300 BT P 01
AK300.BT
MAS-BT JIS B 6339 ER collet chuck
Show variations
W A AK300M HSK P 01
AK300.7
DIN 69893-1 A ER collet chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A A305 P 01
A305.0
DIN 1835 B ER collet chuck
Show variations
