Products Cutting tools Milling Milling tools Ball-nose copy milling cutters MC482 Advance MC482-A-2-L 4042446282585

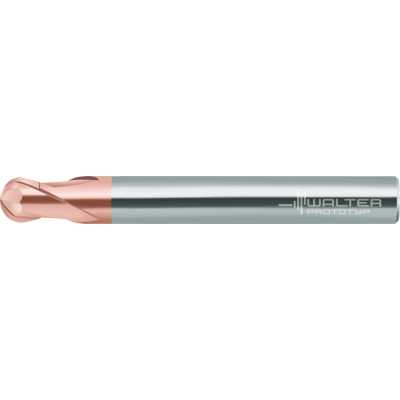

Solid carbide ball-nose copy milling cutters

MC482-10.0A2L-WB10TG

EAN-code: 4042446282585
M-copy-milling-4-Icon
D-M-Z2-Icon M-Spiralw-30-Icon Recon-Icon Tr-48-63HRC-Icon
P
M
K
N
S
H
O
VAT 0% 172,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P-MR-MC482-A-2-L-D-01
Enlarge
Description Symbol Value
Cutting edge length
Lc
8 mm
Cutting edge diameter
Dc
10 mm
Connection diameter
d1
1 mm
Overall length
l1
100 mm
Functional length
l4
60 mm
Tool designation
Designation
MC482-10.0A2L-WB10TG
Radius
r
5 mm
Number of teeth
Z
2
