Products Cutting tools Milling Milling tools Ball-nose copy milling cutters MC482 Advance MC482-A-4-B-N 4042446282714

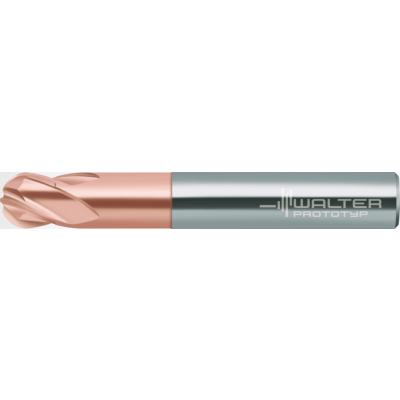

Solid carbide ball-nose copy milling cutters

MC482-06.0A4BC-WB10TG

EAN-code: 4042446282714
M-copy-milling-4-Icon
D-M-Z4-Icon M-Spiralw-30-Icon Recon-Icon Tr-48-63HRC-Icon
Long reach
P
M
K
N
S
H
O
VAT 0% 117,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P MR MC482 A 4 B N D 01
Enlarge
Description Symbol Value
Useable length
l3
18 mm
Cutting edge length
Lc
4,8 mm
Cutting edge diameter
Dc
6 mm
Connection diameter
d1
8 mm
Body diameter
d2
5,9 mm
Overall length
l1
63 mm
Functional length
l4
27 mm
Tool designation
Designation
MC482-06.0A4BC-WB10TG
Radius
r
3 mm
Number of teeth
Z
4
Compatible products
Adaptors
W-A-SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
