Products Cutting tools Milling Milling tools Chamfer milling cutters 90° MC501-A-L 4042446270261

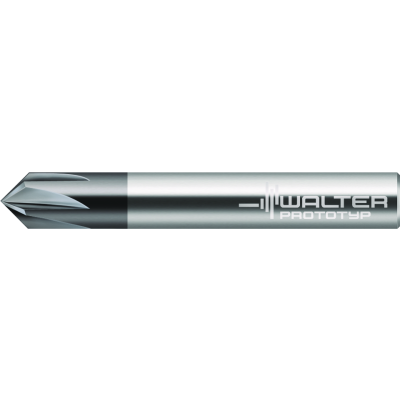

90° solid carbide chamfer mill

MC501-12.0A6L-WJ30TF

EAN-code: 4042446270261
M-chamfering-1-Icon M-chamfering-2-Icon
D-M-Z4-6-Icon M-48HRC-Icon M-ohneZentrums-Icon M-Spiralw-0-Icon Recon-Icon
P
M
K
N
S
H
O
VAT 0% 101,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P-MR-MC501-A-L-D-01
Enlarge
Description Symbol Value
Cutting edge length
Lc
4,5 mm
Cutting edge diameter
Dc
3 mm
Connection diameter
d1
12 mm
Maximum cutting diameter
Da
12 mm
Overall length
l1
83 mm
Maximum projection length
l4
37 mm
Tool designation
Designation
MC501-12.0A6L-WJ30TF
Number of teeth
Z
6
Compatible products
Adaptors
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
