Products Cutting tools Milling Milling tools Radius milling cutters MC503 Advance 4042446270339
Solid carbide quarter-round profile mill

MC503-04.0A4B150-WJ30TF

EAN-code: 4042446270339
M-chamfering-1-Icon M-chamfering-2-Icon
D-M-Z3-4-Icon M-48HRC-Icon M-ohneZentrums-Icon M-Spiralw-0-Icon Recon-Icon
P
M
K
N
S
H
O
VAT 0% 97,80 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product

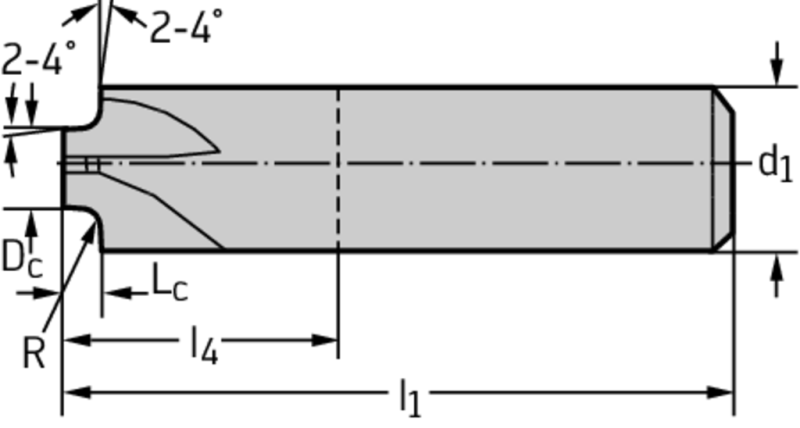

Technical details
P MR MC503 A B R D 01
Enlarge
Description Symbol Value
Radius
r
1,5 mm
Cutting edge length
Lc
2 mm
Cutting edge diameter
Dc
4 mm
Shank diameter
d1
8 mm
Overall length
l1
63 mm
Maximum projection length
l4
27 mm
Tool designation
Designation
MC503-04.0A4B150-WJ30TF
Number of teeth
Z
4
Compatible products
Adaptors
W-A-SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
