Products Cutting tools Milling Milling tools Chamfer milling cutters 90° MC504-A-L 4042446270407

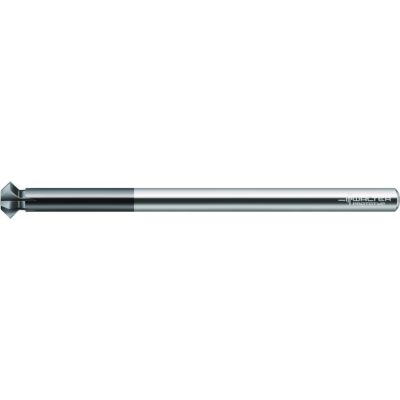

Solid carbide forward/backward deburrer

MC504-06.0A4LB-WJ30TF

EAN-code: 4042446270407
M-chamfering-1-Icon M-chamfering-2-Icon
D-M-Z4-6-Icon M-48HRC-Icon M-ohneZentrums-Icon M-Spiralw-0-Icon Recon-Icon
Long reach Type forward/backward deburrer
P
M
K
N
S
H
O
VAT 0% 105,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details

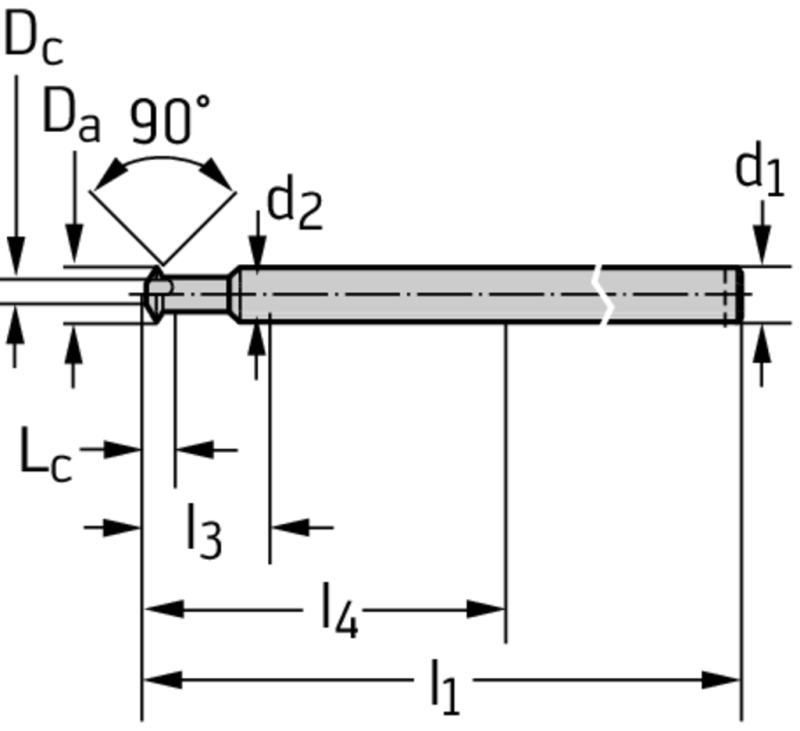

P MR MC504 A L D 01
Enlarge
Description Symbol Value
Body diameter
d2
3,9 mm
Cutting edge diameter
Dc
0,4 mm
Mounting diameter
d1
6 mm
Cutting edge diameter
Da
6 mm
Cutting edge length
Lc
4,25 mm
Overall length
l1
100 mm
Functional length
l4
64 mm
Tool designation
Designation
MC504-06.0A4LB-WJ30TF
Number of teeth
Z
4
Compatible products
Adaptors
W-A-SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
