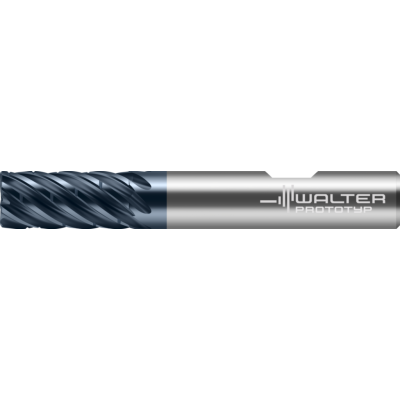

Solid carbide shoulder milling cutters

MD173-10.0W7B050-WJ30EN NEW 2024

EAN-code: 4063465914417
M-dynamic-milling-Icon M-helical-interpolation-Icon M-pocket-milling-Icon M-shoulder-milling-wall-Icon
D-M-Z7-Icon M-Spiralw-38-Icon M-Zentrumsschneide-Icon Recon-Icon
Chip breaker
P
M
K
N
S
H
O
VAT 0% 122,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P-MR-MD173-W-7-B-R-D-01
Enlarge
Description Symbol Value
Cutting edge length
Lc
22 mm
Cutting edge diameter
Dc
10 mm
Shank diameter
d1
10 mm
Overall length
l1
72 mm
Functional length
l4
32 mm
Tool designation
Designation
MD173-10.0W7B050-WJ30EN
Radius
r
0,5 mm
Number of teeth
Z
7
Compatible products
Adaptors
W-A-SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A A170M NCT P 01
A170M.0
Weldon shank adaptor
Show variations
W-A-C330-P-01
C330-ER40
DIN 6499 ER collets
Show variations
W A C330 P 01
C330-ER32
DIN 6499 ER collets
Show variations
W-A-C330-P-01
C330-ER25
DIN 6499 ER collets
Show variations
W-A-C330-P-01
C330-ER20
DIN 6499 ER collets
Show variations
W-A-C330-P-01
C330-ER16
DIN 6499 ER collets
Show variations
W A 391 20 CAPTO P 01
391.20-CAPTO
Weldon shank adaptor
Show variations
W A 391 14 CAPTO P 01
391.14-CAPTO
ER collet chucks
Show variations
W A AK300T P 01
AK300.T
ER collet chucks
Show variations
W A AK300 SK P 01
AK300.S
DIN 69871 A ER collet chuck
Show variations
W A AK300 BT P 01
AK300.BT
MAS-BT JIS B 6339 ER collet chuck
Show variations
W A AK300M HSK P 01
AK300.7
DIN 69893-1 A ER collet chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK170 SK P 01
AK170.S
DIN 69871 AD/B Weldon adaptor
Show variations
W A AK170 BT P 01
AK170.BT
MAS-BT JIS B 6339 Weldon adaptor
Show variations
W A A305 P 01
A305.0
DIN 1835 B ER collet chuck
Show variations
W A A170 HSK P 01
A170.7
DIN 69893-1 A Weldon adaptor
Show variations
