4063465914448

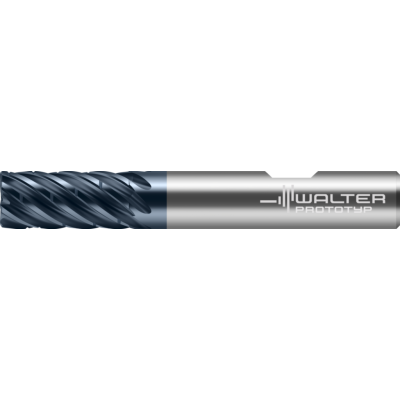

MD173-W-7-B-R-WJ30EN-P-01 image

Solid carbide shoulder milling cutters

MD173-20.0W7B100-WJ30EN NEW 2024

EAN-code: 4063465914448

M-dynamic-milling-Icon

M-helical-interpolation-Icon

M-pocket-milling-Icon

M-shoulder-milling-wall-Icon

M-Spiralw-38-Icon

M-Zentrumsschneide-Icon

Chip breaker

P

M

K

N

S

H

O

VAT 0% 487,00 €

Checking availability

You need to log in before purchasing. Request credentials here.

Ask about this product

Ask about this product

Technical details

P-MR-MD173-W-7-B-R-D-01

Description Symbol Value

Cutting edge length

L_c

41 mm

Cutting edge diameter

D_c

20 mm

Shank diameter

d₁

20 mm

Overall length

l₁

104 mm

Functional length

l₄

54 mm

Tool designation

Designation

MD173-20.0W7B100-WJ30EN

Radius

r

1 mm

Number of teeth

Z

7

Compatible products

Adaptors

W-A-SL-K-P-01

REDUZIERHUELSE

Adaptor sleeves for peripheral cooling

AB019-H

DIN 69893-1 A slim hydraulic expansion chuck

W A A170M NCT P 01

A170M.0

Weldon shank adaptor

W-A-C330-P-01

C330-ER40

DIN 6499 ER collets

W A C330 P 01

C330-ER32

DIN 6499 ER collets

W A 391 20 CAPTO P 01

391.20-CAPTO

Weldon shank adaptor

W A 391 14 CAPTO P 01

391.14-CAPTO

ER collet chucks

W A AK300 SK P 01

AK300.S

DIN 69871 A ER collet chuck

W A AK300 BT P 01

AK300.BT

MAS-BT JIS B 6339 ER collet chuck

W A AK300M HSK P 01

AK300.7

DIN 69893-1 A ER collet chuck

W A AK182 SK P 01

AK182-SK

DIN 69871 hydraulic expansion chuck

W A AK182 HSK P 01

AK182-HSK

DIN 69893-1 A hydraulic expansion chuck

W A AK182 CAPTO P 01

AK182-C

Walter Capto^TM hydraulic expansion chuck ISO 26623-1

W A AK182 BT P 01

AK182-BT

MAS-BT JIS B 6339 hydraulic expansion chuck

W A AK170 SK P 01

AK170.S

DIN 69871 AD/B Weldon adaptor

W A AK170 BT P 01

AK170.BT

MAS-BT JIS B 6339 Weldon adaptor

W A A170 HSK P 01

A170.7

DIN 69893-1 A Weldon adaptor
