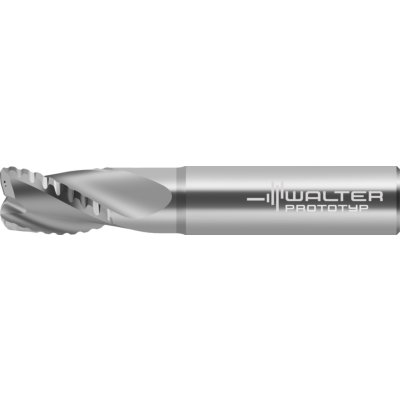

MD265-A-3-R-C-IC-WJ30UU-P-SV-AD image

Solid carbide shoulder/slot milling cutters

MD265-25.0A3B200C-WJ30UU NEW 2022

EAN-code: 4063464228805

M-helical-interpolation-Icon

M-pocket-milling-Icon

M-slot-milling-Icon

M-Spiralw-30-Icon

M-Zentrumsschneide-Icon

Long reach

P

M

K

N

S

H

O

VAT 0% 505,00 €

Checking availability

You need to log in before purchasing. Request credentials here.

Ask about this product

Ask about this product

Technical details

P-MR-MD265-A-3-R-C-IC-D-01

Description Symbol Value

Useable length

l₃

52 mm

Radius

r

2 mm

Cutting edge length

L_c

4 mm

Cutting edge diameter

D_c

25 mm

Mounting diameter

d₁

25 mm

Body diameter

d₂

23,8 mm

Overall length

l₁

11 mm

Functional length

l₄

54 mm

Tool designation

Designation

MD265-25.0A3B200C-WJ30UU

Number of teeth

Z

3

Compatible products

Adaptors

W-A-FS2226-P-01

REDUZIERHUELSE-IK

Adaptor sleeves for internal cooling

W-A-C330-P-01

C330-ER40

DIN 6499 ER collets

W A AK182 SK P 01

AK182-SK

DIN 69871 hydraulic expansion chuck

W A AK182 HSK P 01

AK182-HSK

DIN 69893-1 A hydraulic expansion chuck

W A AK182 BT P 01

AK182-BT

MAS-BT JIS B 6339 hydraulic expansion chuck

W A AK530 HSK P 01

A560.H

DIN 69893-1 A shrink-fit adaptor
